Products >> Surface Pump >> Vortex Pump

IDB35-40-50

Product No.：202269122252
Price：15USD-26USD

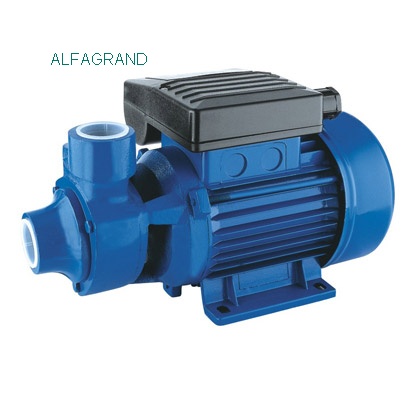

Product name：IDB35 model 0.5Hp water surface pump
Horsepower：0.5HP-1.0HP
Model Number：IDB Series
Material：Iron Pump Head,Alu Pump Casting,Brass Impeller
Voltage：110V/60HZ,220V/50HZ
Other：Min. Order: 100 Pieces
Online Inquiry

Type: IDB-35-40-50

Operating conditions:

1. Liquid temperature up to 60℃

2. Ambient temperature up to 40℃

3. Total suction lift to 8m

4. Continuous duty

Motor

1. Two-Pole induction motor (n=2900r. P. M. )

2. Insulation Class: B/F

3. Protection: IP44

Material

1. Pump body: Cast Iron/Brass insert

2. Motor Support: Cast Iron

3. Impeller: Brass

4. Shaft with rotor: 45# Carbon Steel/Stainless Steel

5. Mechanical seal: Carbon/Ceramic

Application:

-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.

-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.

-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.

PARAMETER DATA:

Model	Power		Max. Flow(L/min)	Max.Head(m)	Max.Suct.(m)	Inlet/Outlet(inch)	G.W./N/W.(kg)	Packing Dimension(mm)
Model	KW	HP	Max. Flow(L/min)	Max.Head(m)	Max.Suct.(m)	Inlet/Outlet(inch)	G.W./N/W.(kg)	Packing Dimension(mm)
IDB35	0.37	0.5	35	35	9	1”X1”	6.5/5.8	285x160x175
IDB40	0.55	0.75	50	50	9	1”X1”	10.5/9.5	320x175x215
IDB50	0.75	1.0	55	60	9	1”X1”	11.5/10.5	320x175x215
