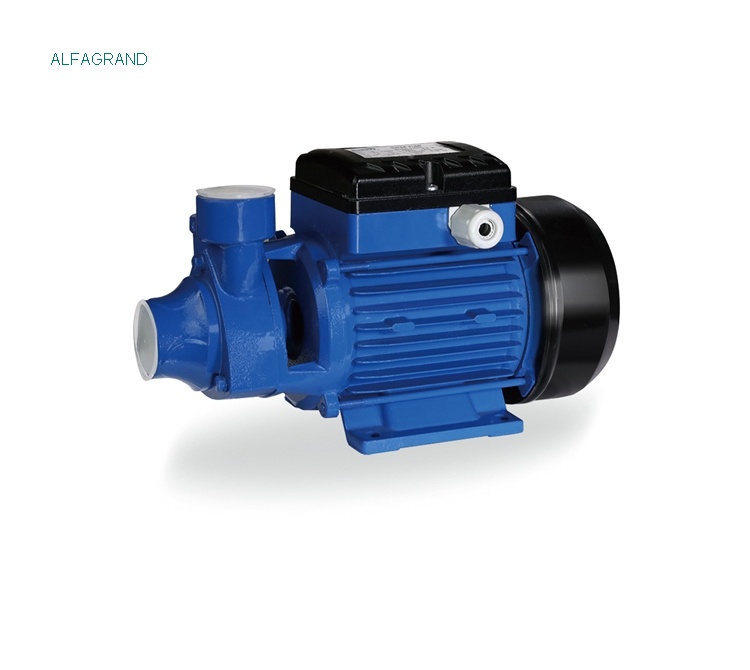

Pentax model pm45 0.5hp water pump for household booster water
Professional Manufacturer Of Water Pumps in China

Products >> Surface Pump >> Vortex Pump

  • Pentax type PM45-80
Pentax type PM45-80

Pentax type PM45-80

  • Product No.:20226912533
  • Price:19USD-25USD
  • Product name:Pentax model pm45 0.5hp water pum
  • Horsepower:0.5HP-1.0HP
  • Model Number:PM Series
  • Material:Iron Pump Head,Alu Pump Casting,Brass Impeller
  • Voltage:110V/60HZ,220V/50HZ
  • Other:Min. Order: 100 Pieces
  • Online Inquiry
Type: PM45-80



Operating conditions:

1. Liquid temperature up to 60℃

2. Ambient temperature up to 40℃

3. Total suction lift to 8m

4. Continuous duty



Motor

1. Two-Pole induction motor (n=2900r. P. M. )

2. Insulation Class: B/F

3. Protection: IP44



Material

1. Pump body: Cast Iron/Brass insert

2. Motor Support: Cast Iron

3. Impeller: Brass

4. Shaft with rotor: 45# Carbon Steel/Stainless Steel

5. Mechanical seal: Carbon/Ceramic



Application:

-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.

-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.

-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.


PARAMETER DATA:





NO.

TYPE

POWER

MAX.FLOW

MAX.HEAD

INLET/OUTLET

MAX.SUCT

N.W

PACKING DIMENSION

(Kw)

(Hp)

(L/min)

(m)

(Inch)

(m)

(K.g)

(mm)

A

PM45

0.37

0.5

35

35

1"*1"

9

5.5

270*180*235





 B

PM80  0.75  1.0  60  50  1"*1"  9  8.5  285*185*260
