Pedrollo,Shimge,Leo Design QB model 0.5Hp,0.75Hp,1Hp water pump
Professional Manufacturer Of Water Pumps in China

Products >> Surface Pump >> Vortex Pump

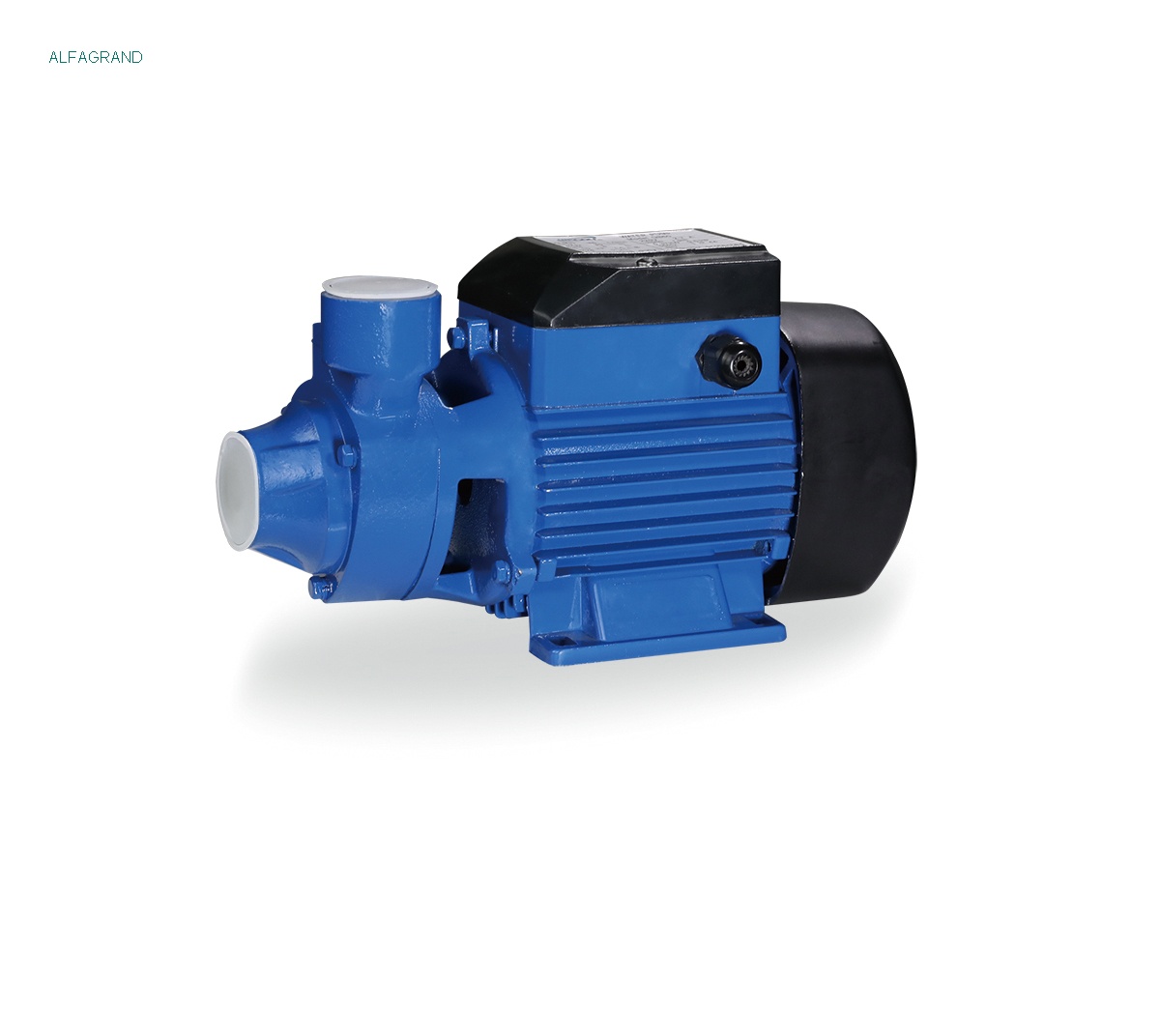

  • QB60-70-80

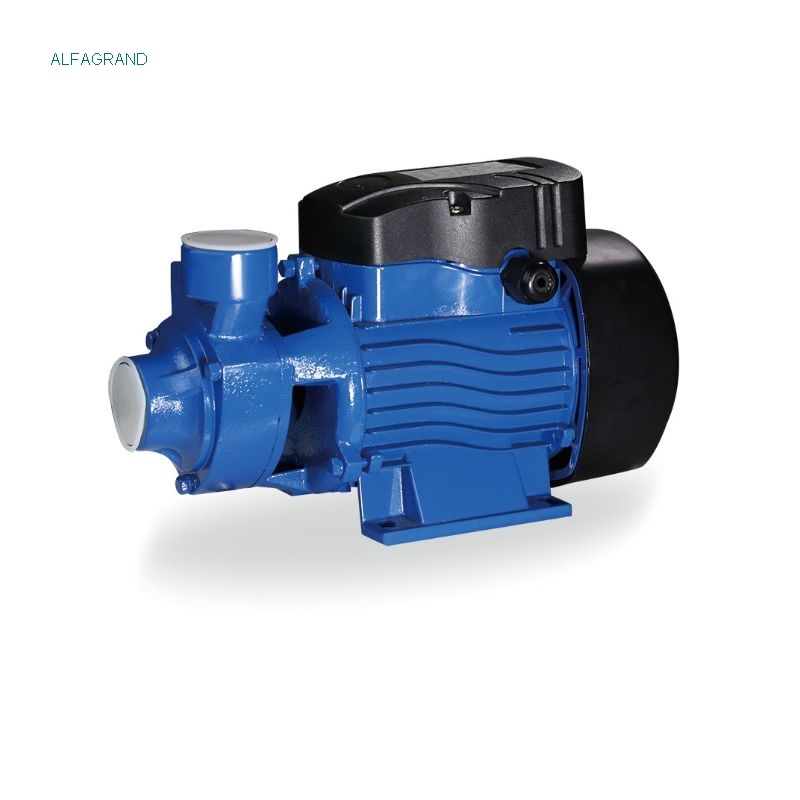

  • QB60-70-80

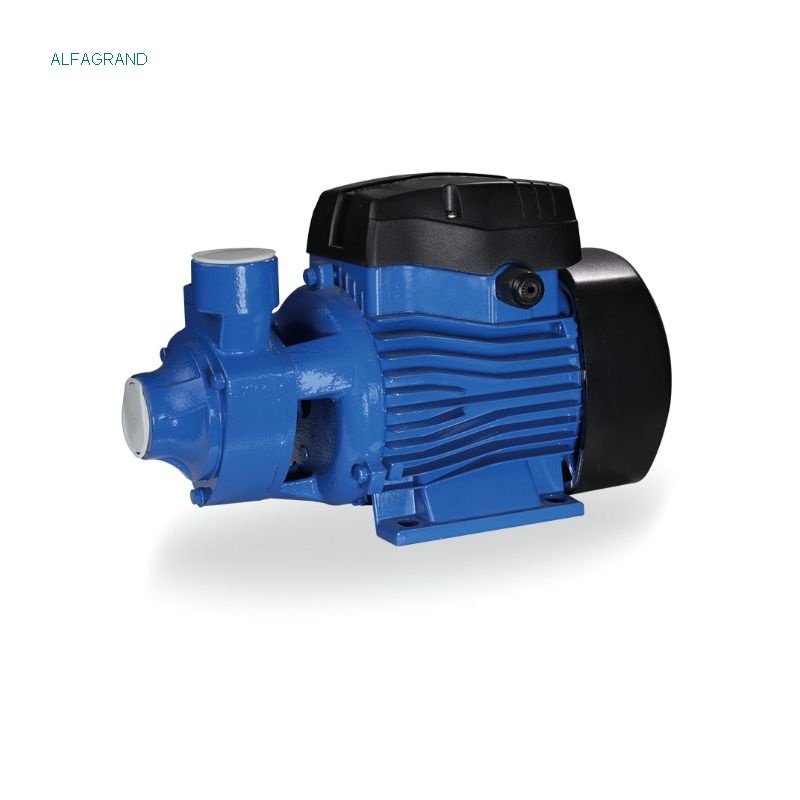

  • QB60-70-80

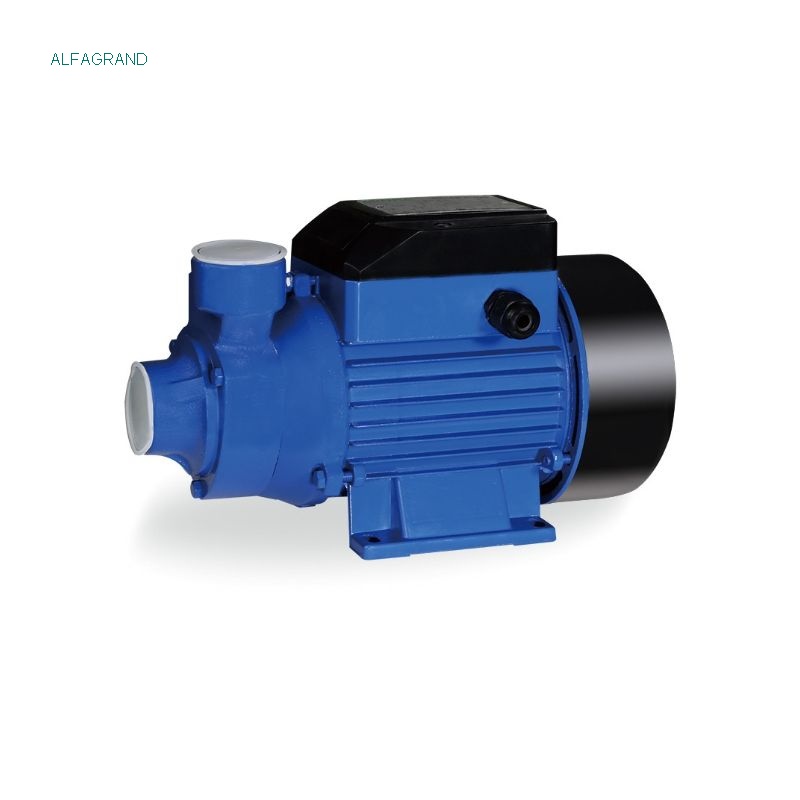

  • QB60-70-80
QB60-70-80 QB60-70-80 QB60-70-80 QB60-70-80

QB60-70-80

  • Product No.:202268223144
  • Price:16USD-25USD
  • Product name:Pedrollo,Shimge,Leo Design QB model 0.5Hp,0.75Hp,1Hp water pump
  • Horsepower:0.5hp/0.75hp/1hp
  • Model Number:QB Series
  • Material:Iron Pump Head,Alu Pump Casting,Brass Impeller
  • Voltage:110V/60HZ,220V/50HZ
  • Other:Min. Order: 100 Pieces
  • Online Inquiry
Type: QB60-70-80-90



Operating conditions:

1. Liquid temperature up to 60℃

2. Ambient temperature up to 40℃

3. Total suction lift to 8m

4. Continuous duty



Motor

1. Two-Pole induction motor (n=2900r. P. M. )

2. Insulation Class: B/F

3. Protection: IP44



Material

1. Pump body: Cast Iron/Brass insert

2. Motor Support: Cast Iron

3. Impeller: Brass

4. Shaft with rotor: 45# Carbon Steel/Stainless Steel

5. Mechanical seal: Carbon/Ceramic



Application:

-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.

-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.

-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.


PARAMETER DATA:





NO.

TYPE

POWER

MAX.FLOW

MAX.HEAD

INLET/OUTLET

MAX.SUCT

N.W

PACKING DIMENSION

(Kw)

(Hp)

(L/min)

(m)

(Inch)

(m)

(K.g)

(mm)

A

QB60

0.37

0.5

35

35

1"*1"

9

5.5

265*130*160

B

QB70

0.55

0.75

45

50

1"*1"

9

9.2

325*160*200

C

QB80

0.75

1

50

60

1"*1"

9

 10.2

325*160*200


Previous Product:Pedrollo type PKM60
