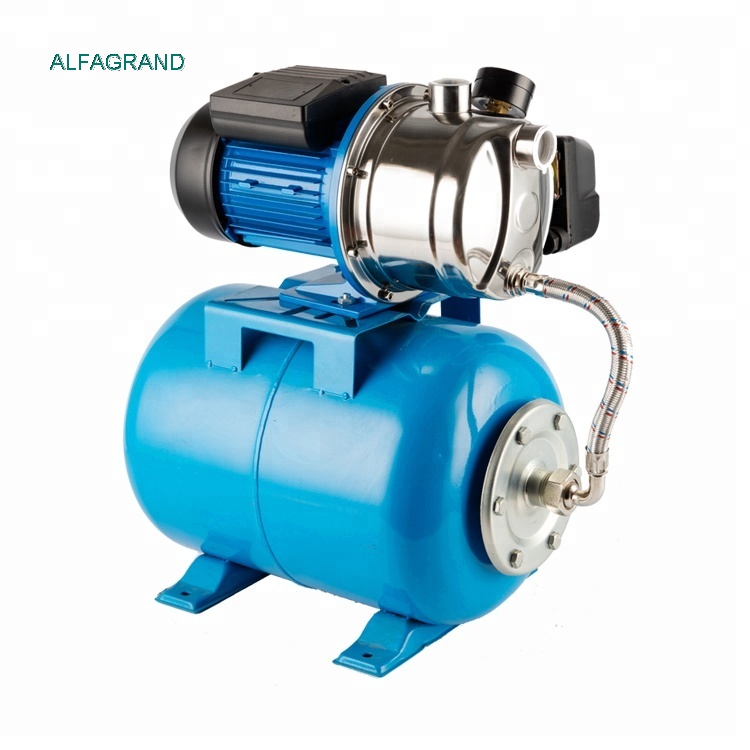

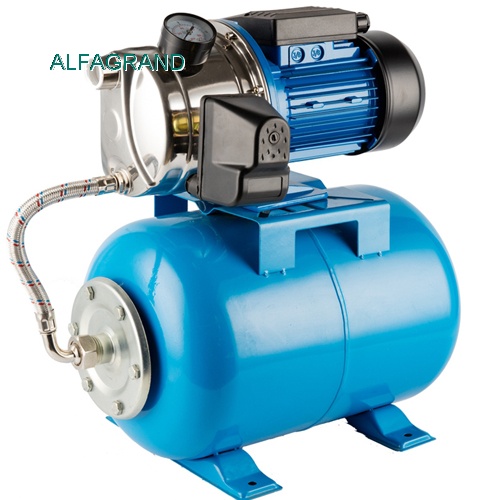

Single Phase Surface AUTOJS100 Electric Water Jet Pump For Watering Gardens
Professional Manufacturer Of Water Pumps in China

Products >> Surface Pump >> Self-Priming Pump

  • AUTOJS60-80-100
  • AUTOJS60-80-100
AUTOJS60-80-100 AUTOJS60-80-100

AUTOJS60-80-100

  • Product No.:2022830101336
  • Price:28USD-45USD
  • Product name:JS Series stainless steel body Auto water pumps for garden
  • Horsepower:0.5~1.0HP
  • Model Number:AUJS Series
  • Material:Copper wire,brass impeller,Aluminum casting,Stainless steel body,with 24L tank,pressure gauge,electric switch,flexible hose
  • Voltage:110V/60Hz;220V/5Hz
  • Other:Min. Order: 100 Pieces
  • Online Inquiry

Type: AUTOJS60-80-100



Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60ìC

3. Ambient temperature up to 40ìC

4. Total suction lift to 9m

5. Continuous duty



Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44



Material:

1. Pump body: Iron

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl/Aluminum

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic 7. 24L Iron horizontal pressure tank,electric switch,pressure gauge,flexible hose



Application:

-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.

-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.


PARAMETER DATA:

Model

Power

Max.Flow(L/min)

Max.Head(m)

Max.Suct.(m)

Inlet/Outlet(inch)

G.W./N/W.

Packing size(mm)

KW

HP

AUJS-60

0.37

0.50

42

40

9

1”X1”

10.5/9.5kg

415X210X215

AUJS-80

0.55

0.75

46

45

9

1”X1”

11.5/10.5kg

415X210X215

AUJS-100

0.75

1.0

52

50

9

1”X1”

12.5/11.5kg

415X210X215






Previous Product:JPM Model Next Product:AUTOJET60S-80S-100S
