Products >> Surface Pump >> Self-Priming Pump

WZB35-45-65

Product No.：202269113538
Price：19USD-25USD

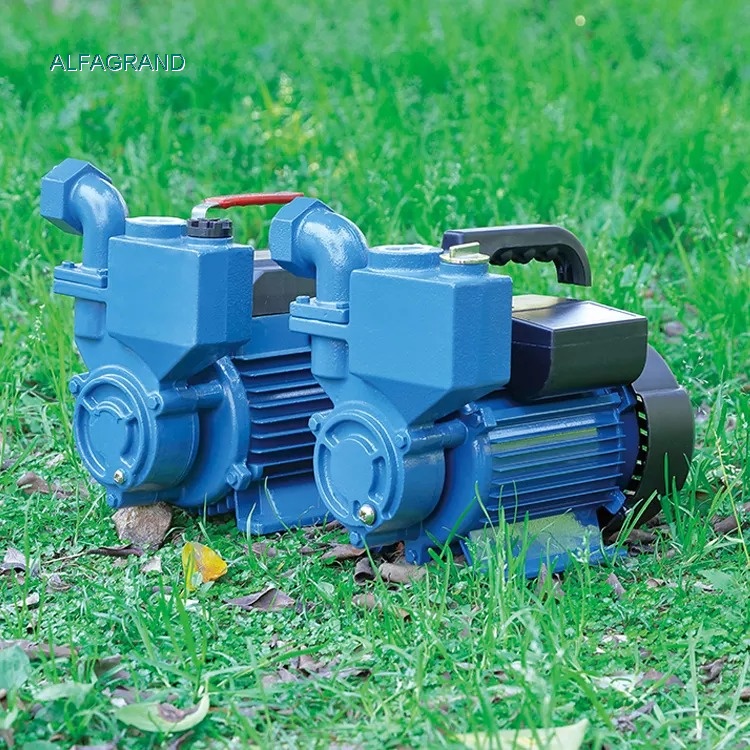

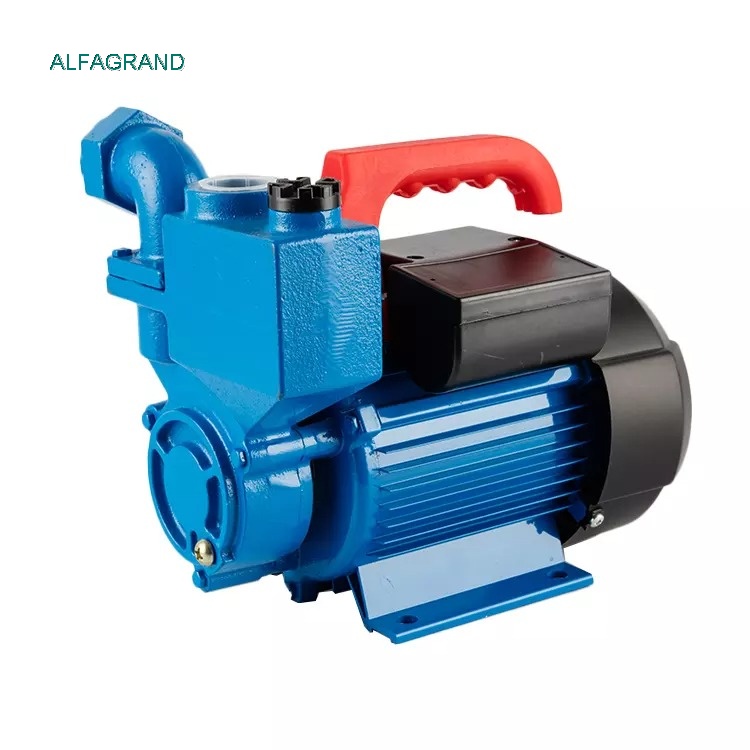

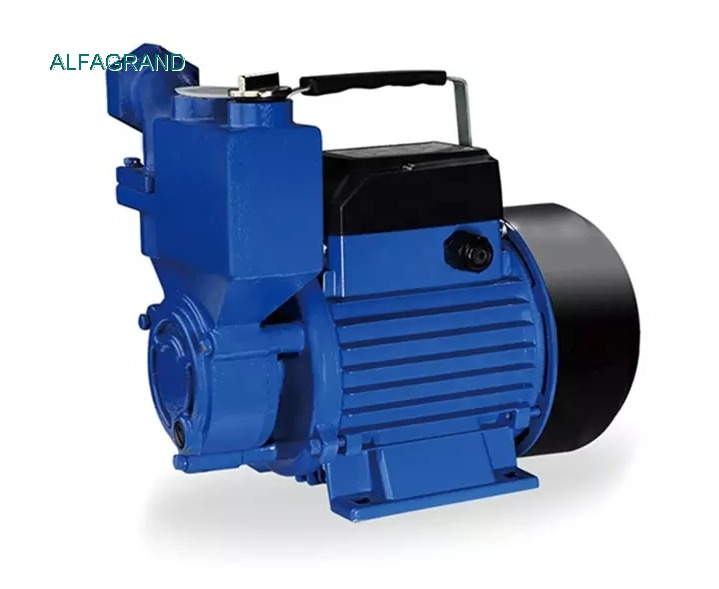

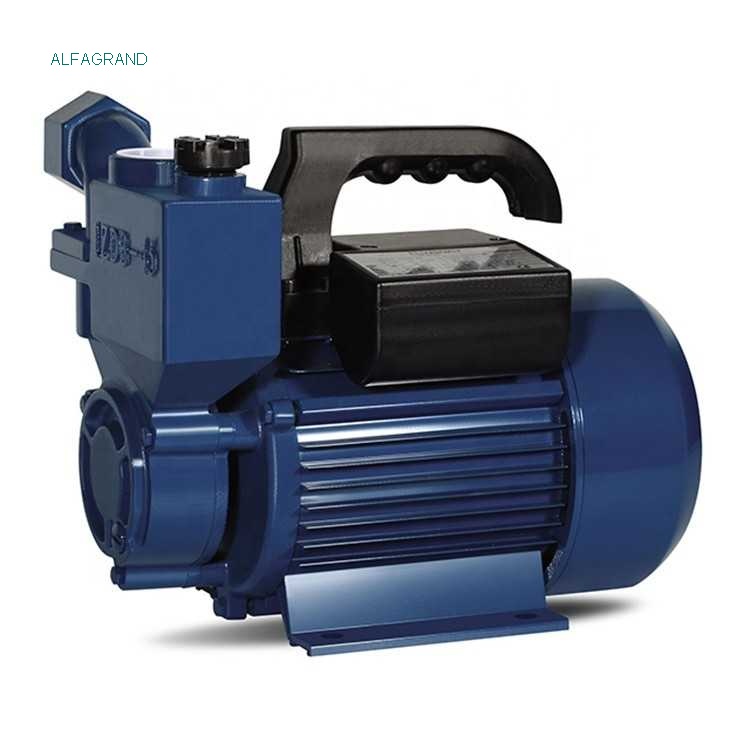

Product name：WZB model Self-priming Surface Pump
Horsepower：370W/550W/750W
Model Number：WZB Series
Material：Iron Pump Head,Alu Pump Casting,Brass Impeller
Voltage：110V/60HZ,220V/50HZ
Other：Min. Order: 100 Pieces
Online Inquiry

Type: WZB35-45-65

Operating conditions:

1. Liquid temperature up to 60℃

2. Ambient temperature up to 40℃

3. Total suction lift to 8m

4. Continuous duty

Motor

1. Two-Pole induction motor (n=2900r. P. M. )

2. Insulation Class: B/F

3. Protection: IP44

Material

1. Pump body: Cast Iron/Brass insert

2. Motor Support: Cast Iron

3. Impeller: Brass

4. Shaft with rotor: 45# Carbon Steel/Stainless Steel

5. Mechanical seal: Carbon/Ceramic

Application:

-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.

-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.

-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.

PARAMETER DATA:

NO.	TYPE	POWER		MAX.FLOW	MAX.HEAD	INLET/OUTLET	MAX.SUCT	N.W	PACKING DIMENSION
NO.	TYPE	(Kw)	(Hp)	(L/min)	(m)	(Inch)	(m)	(K.g)	(mm)
A	1WZB-35	0.37	0.5	35	35	1"*1"	9	5.5	270180235
B	1WZB-45	0.55	0.75	42	40	1"*1"	9	7.5	285185260
C	1WZB-65	0.75	1.0	60	50	1"*1"	9	8.5	285185260
