Products >> Surface Pump >> Self-Priming Pump

JPM Model

Product No.：2022111221256
Price：20-28USD
Product name：JPM series self priming peripheral water pump
Horsepower：0.55HP/1.1HP/1.5HP/2HP
Model Number：JPM Series
Material：Pump body: Cast Iron;Pump Impeller: Brass/Techno-polymer(P.P.O)/Stainless steel;Motor Housing: Aluminum;Pump Shaft: Stainless Steel/Carbon Steel;
Voltage：110V/60HZ,220V/50HZ
Other：Pressure: 3bar, Low Pressure
Power Source：Electric
Water Quality：Clean Water
Online Inquiry

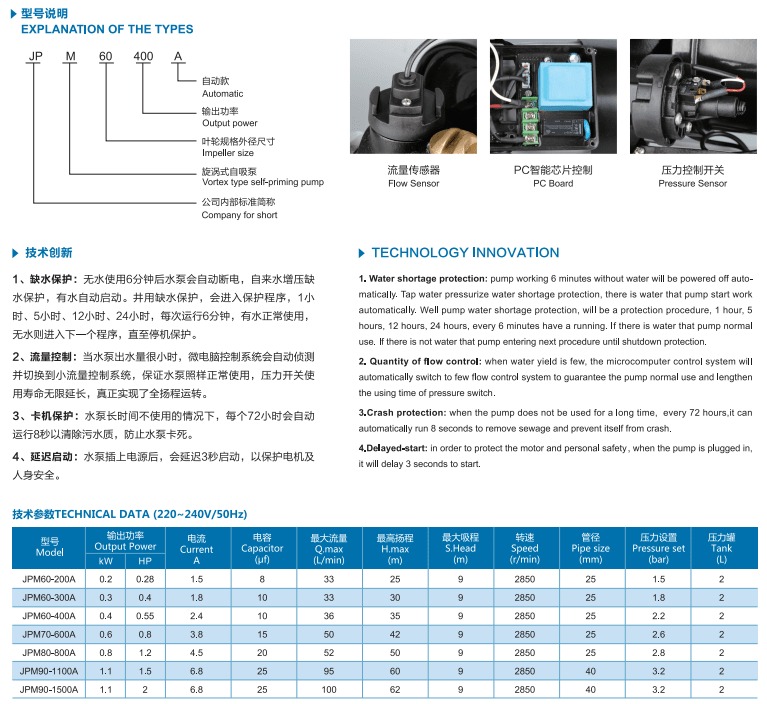

Specification

item	value
Warranty	1 year
Customized support	OEM, ODM
Brand Name	GRANDPUMPS
Model Number	JPM60-200A
Place of Origin	China
Application	Other, Family Homes, Industrial Utilities, Water Treatment Solutions
Horsepower	0.28HP-2HP
Power Source	Electric
Structure	Single-stage Pump
Outlet Size	1''
Voltage	As customer request
Power	0.2kW-1.5kW
Theory	Self-sucking Pump
Pump Body	Cast lron
Impeller	Brass/Stainless Steel
Mechanical Seal	SIC/Ceramic/Graphite
Motor Housing	Aluminum Alloy
Shaft	Carbon Steel/Stainless Steel
Insulation	Class B/Ciass F
Protection	IP44/IP54
Cooling	External Ventilation
Certification	CE/ROHS

Application

JPM series electric pumps are a new design domestic pump,with new design,high efficiency and low consumption.They are widely used in domestic water supply,water intake from well,pressure rise for city water,garden irrigation,vegetable greenhouse water supply.They are especially suitable for pipeline pressure rise of water heater when its water pressure is not enough to avoid the sutiation of hold sometimes and cold sometimes.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty
