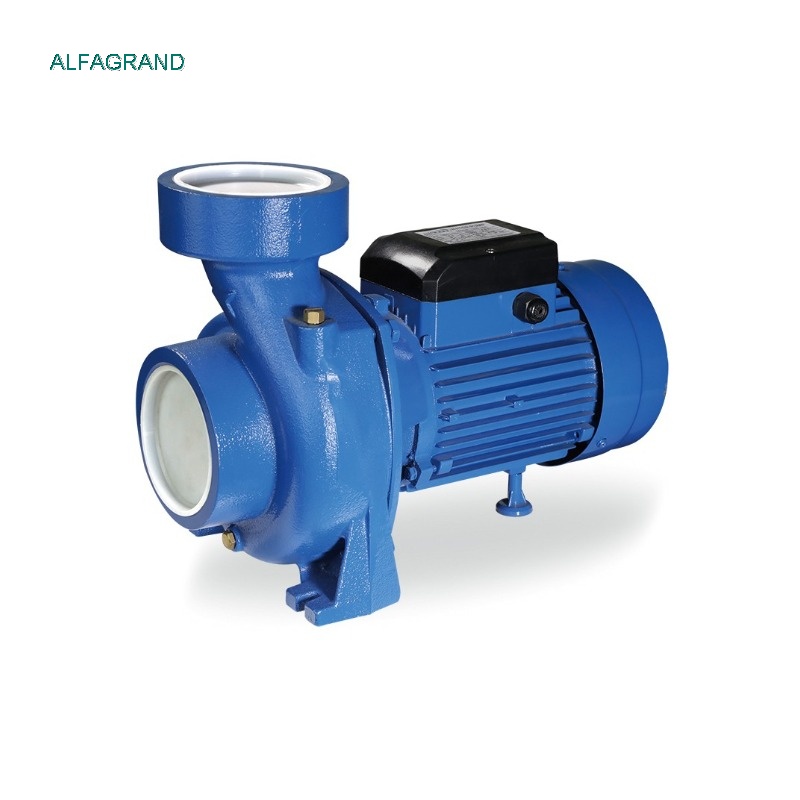

Single Phase Surface MHF Electric Water centrifugal Pump For Watering Gardens
Professional Manufacturer Of Water Pumps in China

Products >> Surface Pump >> Centrifugal Pump

  • MHF-6AR/6BR/6CR
MHF-6AR/6BR/6CR

MHF-6AR/6BR/6CR

  • Product No.:2022822132327
  • Price:76USD~102USD
  • Product name:MHF types centrifugal bomba de agua 3hp
  • Horsepower:1.5HP~3HP
  • Model Number:MHF-6AR/6BR/6CR Series
  • Material:Iron Pump Head,Alu Pump Casting,Brass Impeller
  • Voltage:110V/60HZ,220V/50HZ
  • Other:Min. Order: 100 Pieces
  • Online Inquiry

Type: MHF-6AR/6BR/6CR

Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60℃

3. Ambient temperature up to 40℃

4. Total suction lift to 9m

5. Continuous duty




Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44




Material:

1. Pump body: Cast Iron

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic


Application:

-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.


-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.


-To be used in flow irrigation systems in gardening and agriculture and industrial fittings





PARAMETER DATA:

Model

Power kw

POWER hp

Max.head (m)

Max.flow (L/min)

Max.suct

( m )

Inlet/Outlet

Packing dimension (mm)

MHF-6CR 1.1 1.5 12 1000 9 4’’ X 4’’      460x285x345

MHF-6BR

1.5 2 15

1100

9

4’’ X 4’’

460x285x345

MHF-6AR 2 3 19 1200 9 4’’ X 4’’ 510x295x345
