Products >> Surface Pump >> Centrifugal Pump

CHL Model

Product No.：2022111217301
Price：105USD~219USD

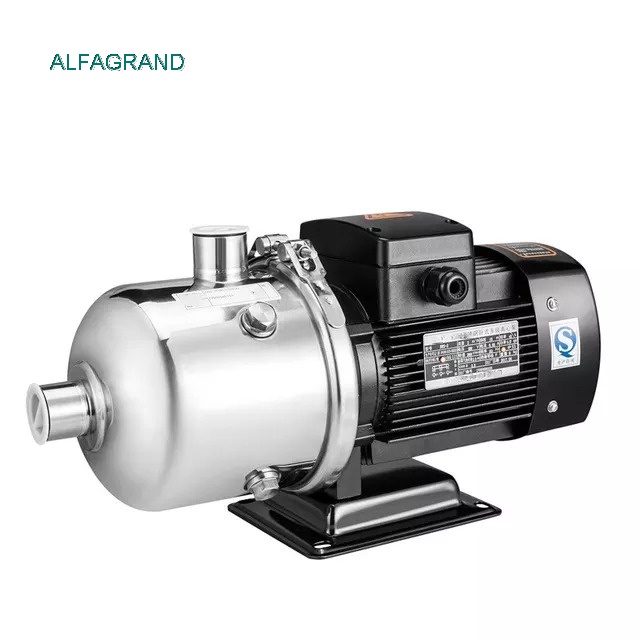

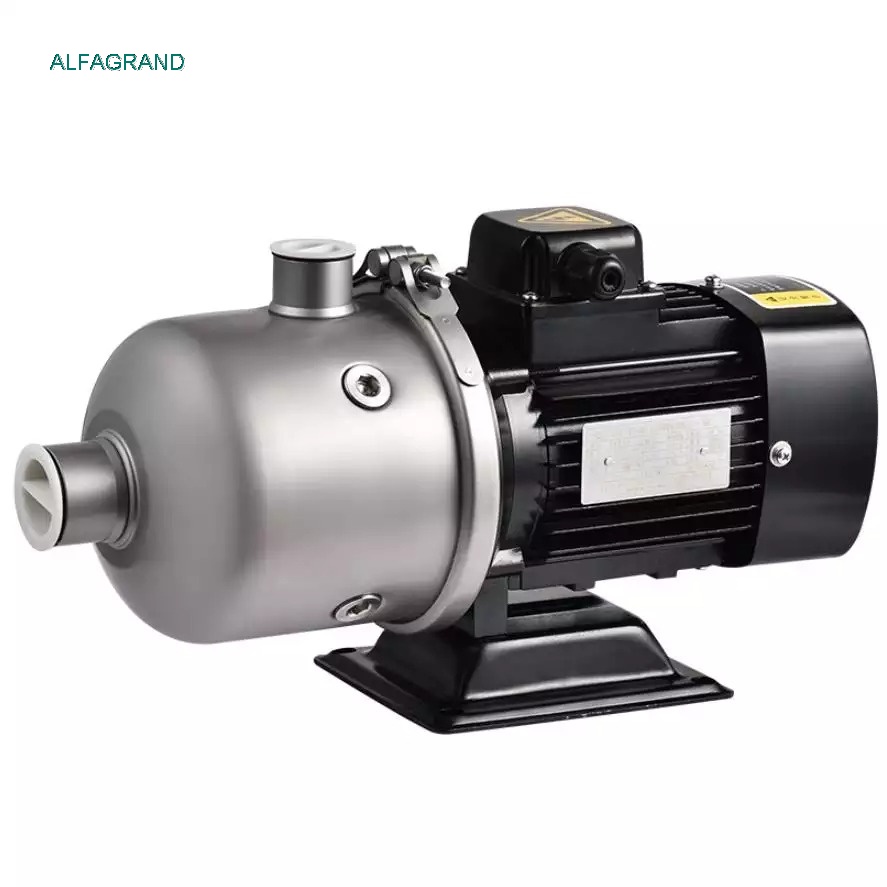

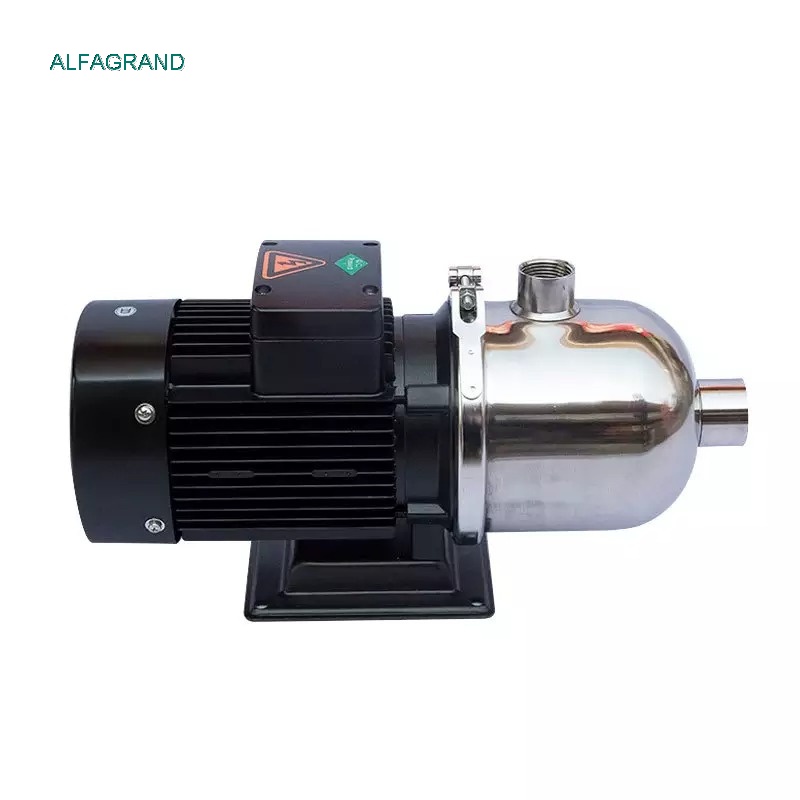

Product name：CHL Model Horizontal centrifugal booster water pump
Horsepower：0.37KW~4KW
Model Number：CHL Series
Material： SS304
Voltage：110V/60HZ,220V,380V/50HZ
Other：Flow range: 0.6~240m³/h;Head range: 15~60m
Power Source：Electric
Water Quality：Clean Water
Motor：100% Copper
Online Inquiry

Introduction:

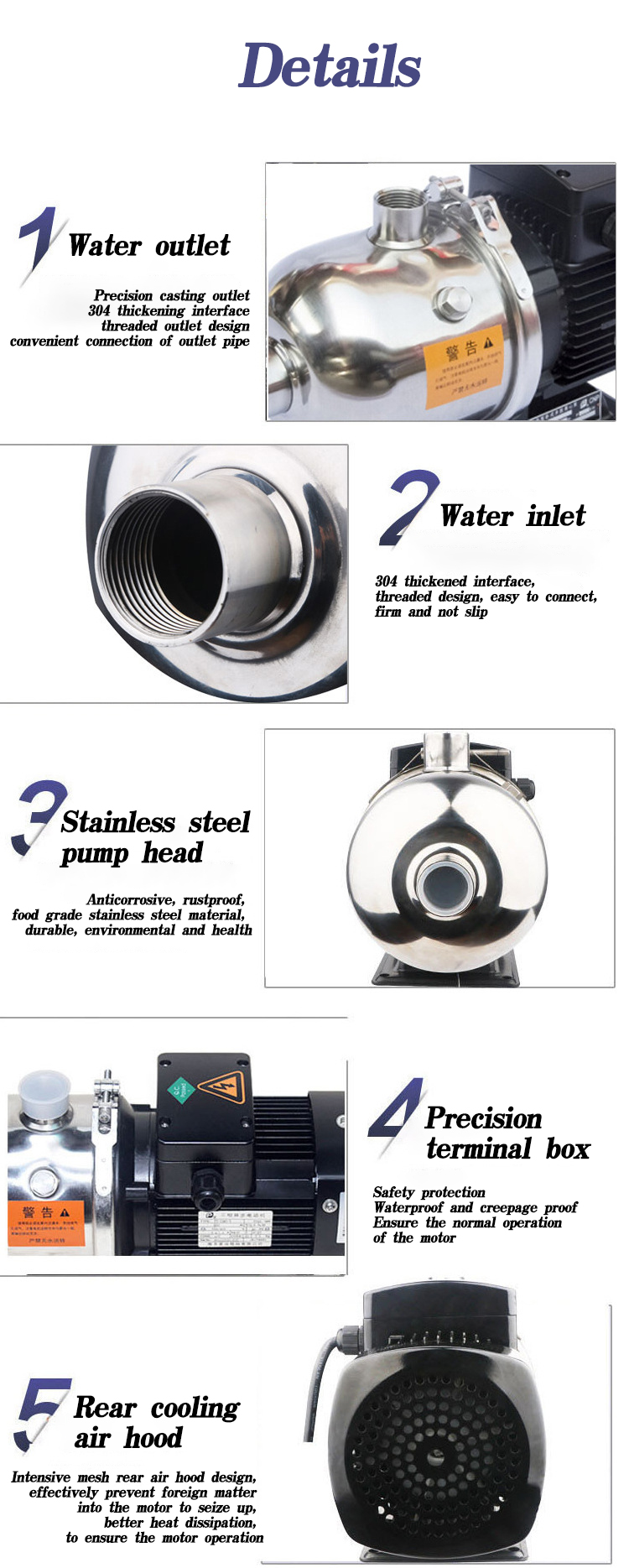

Impeller and wet parts are made of stainless steel.

It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.

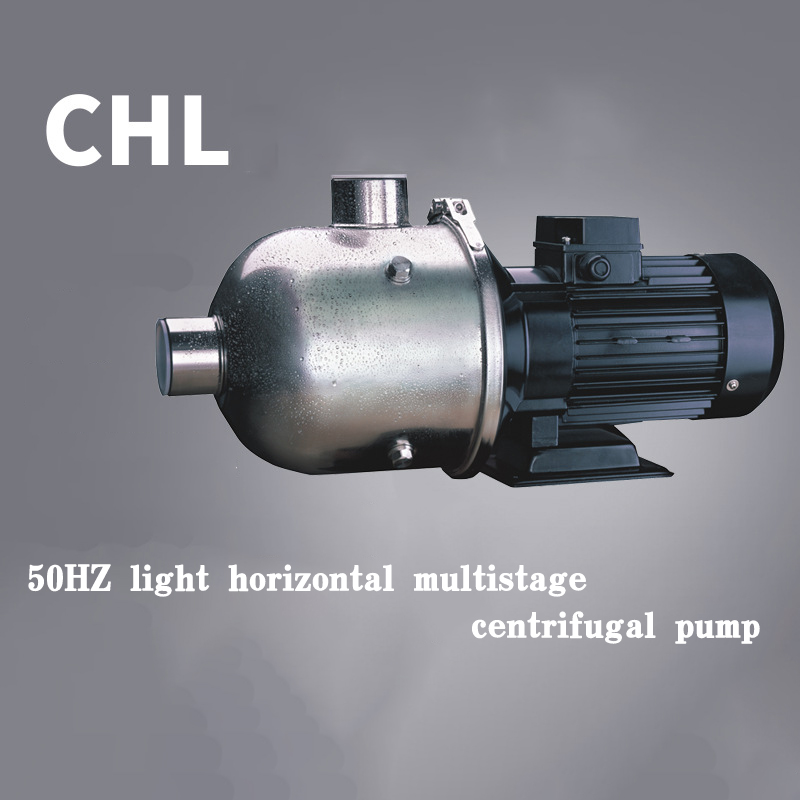

Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.

Axial inlet and radial outlet.

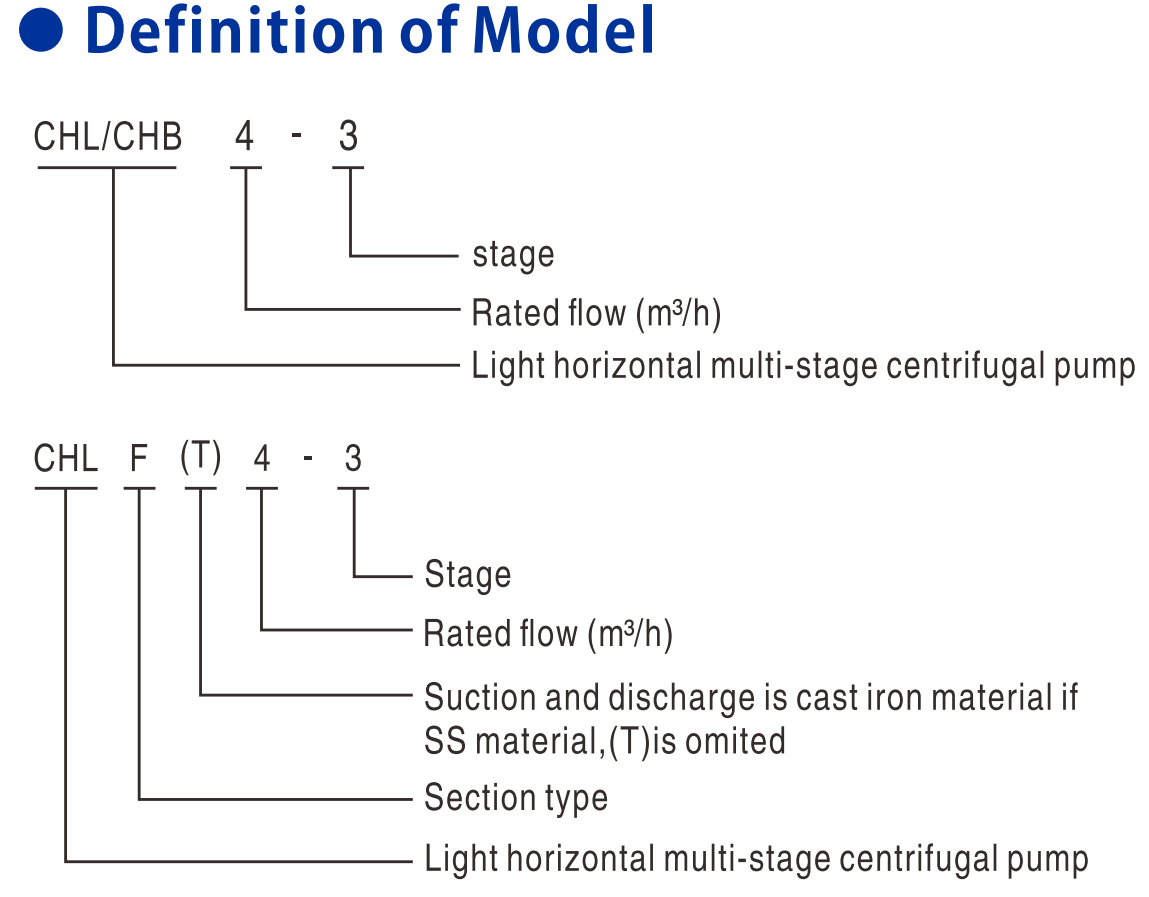

CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.

Liquid temperature:

Normal temperature type:-15°C to +70°C

Hot water type: -15°C to 110°C

Ambient temperature: up to +40°C

Max.operation pressure: 10 bar

Max. Inlet pressure is limited by max. Operation pressure

Working conditions

CHL, CHLF and CHLF(T) type pump are mainly used in industrial field:

Air-conditioning system

Cooling system

Industrial cleaning

Water treatment (Water purification)

Aquiculture

Fertilizing / metering system

Environmental application

Other special applications

Applicable medium

Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.

Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.

When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.

Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.

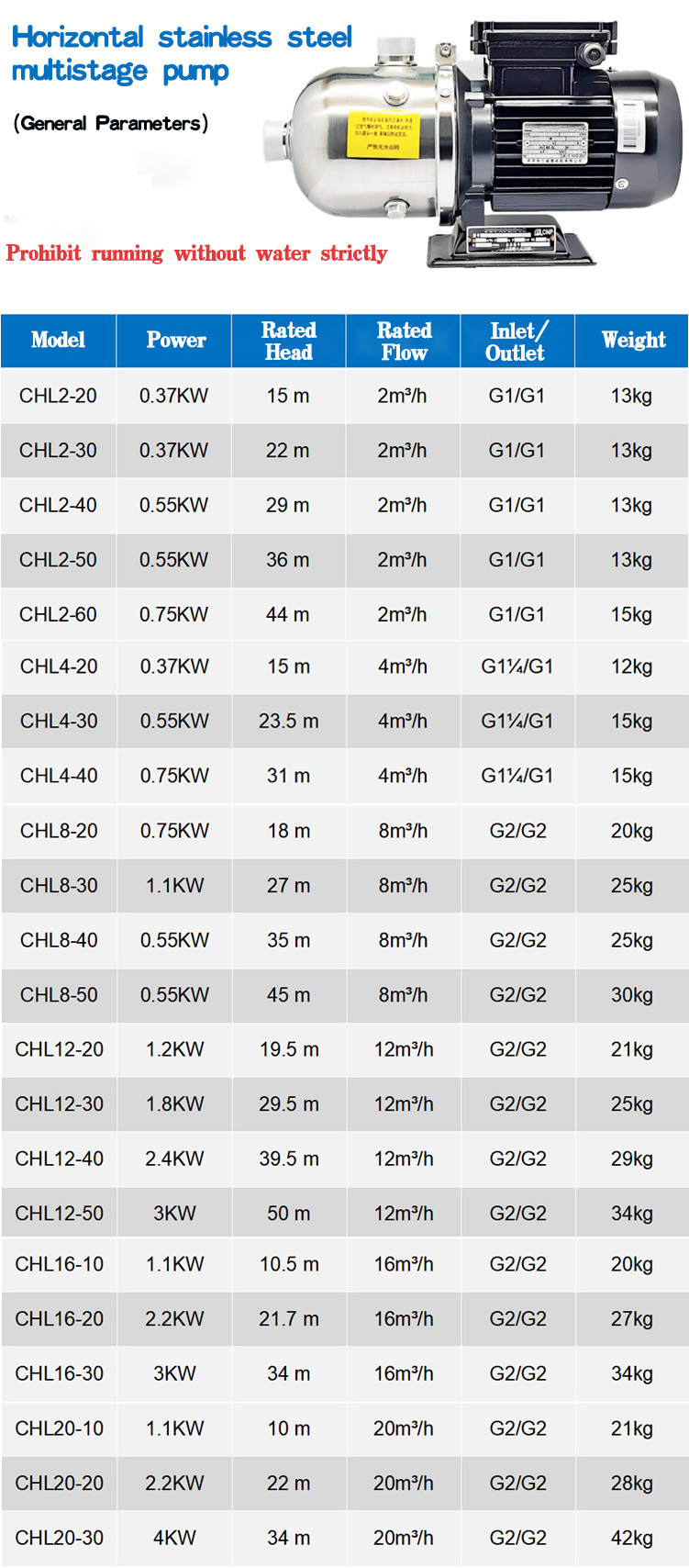

Specification

Working Principle:	Centrifugal
Main applications:	Water, Chemical
Driver:	Electric motor
Power Specs:	220-240V single phase, 220-240V/380-415V three phase 50Hz or 60Hz
Max.permissible fluid temperature:	-15°C to +70°C(hot water type max 110°C)
Type of connection:	Inlet thread, hose, flange
Installation position:	Horizontal
Casing parts material:	Stainless steel 304 or 316
Shaft seal type:	Mechanical seal
Maximum drive rating:	4KW(6HP)
Maximum caliber:	50mm(2inch)
Maximum discharge-side pressure:	0.6MPa(6bar)
Maximum head:	60m(196.8ft)
Flow rate range:	0.5-28m3/h(2.2-123.20US.GPM)
