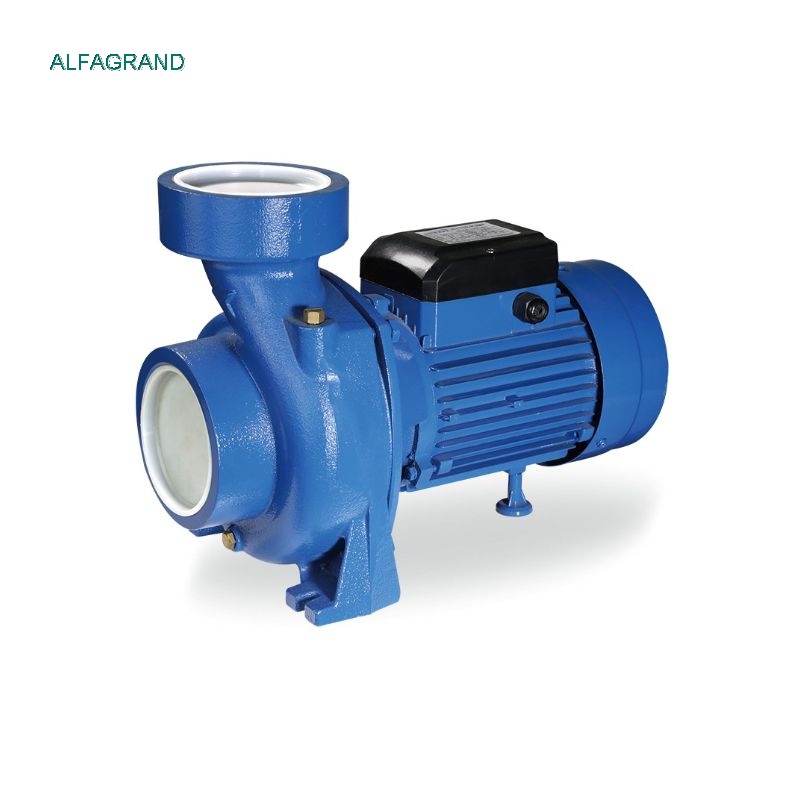

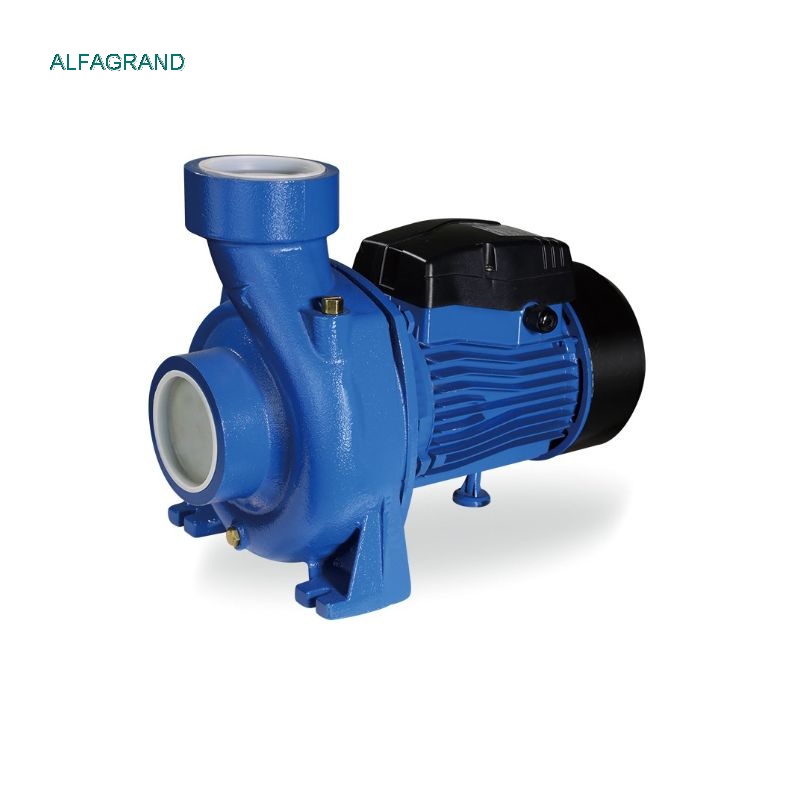

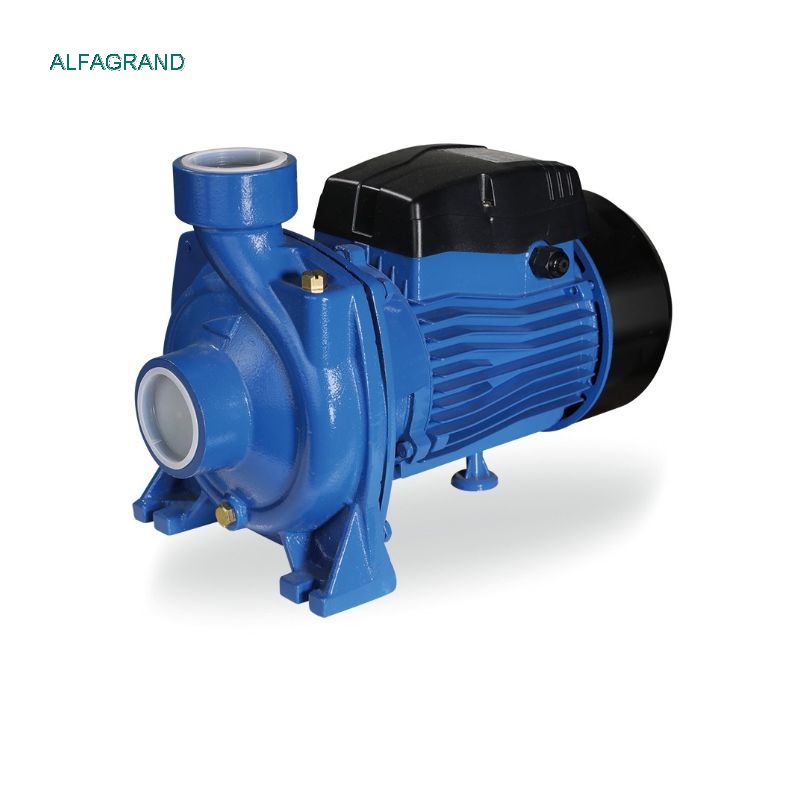

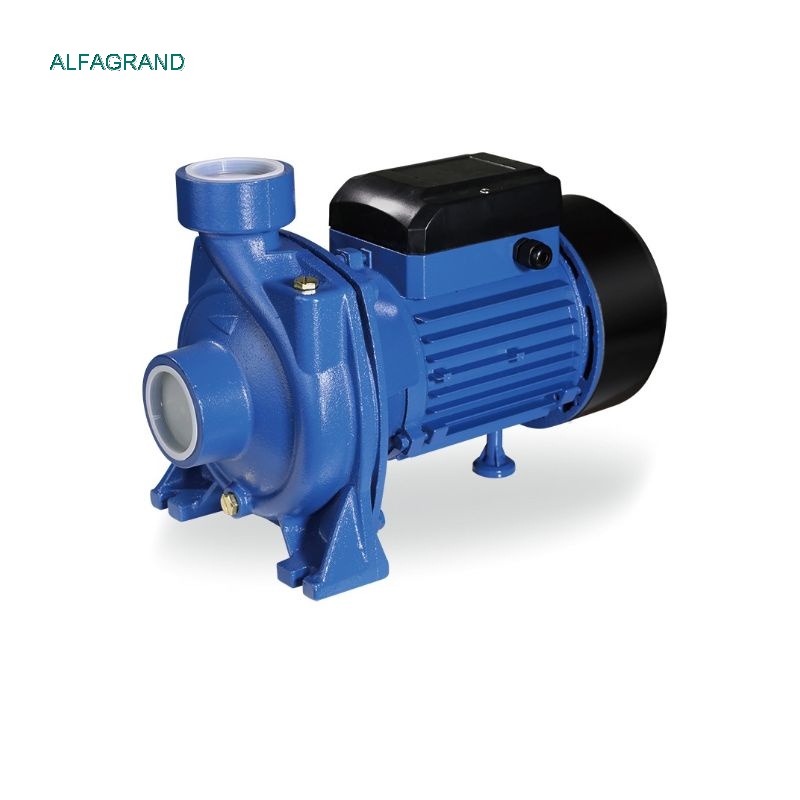

Type: MHF-5A/5B/5C/5AM

Operating conditions:

1. Max working pressure 8 bar

2. Liquid temperature up to 60℃

3. Ambient temperature up to 40℃

4. Total suction lift to 9m

5. Continuous duty

Motor:

1. Two-Pole induction motor (n=2900r.p.m.)

2. Insulation Class B/F

3. Protection IP44

Material:

1. Pump body: Cast Iron

2. Motor Support: Cast Iron

3. Impeller: Brass/Noryl

4. Diffuser: Noryl

5. Shaft with rotor: 45# Carbon Steel/Stainless Steel

6. Mechanical seal: Carbon/Ceramic

Application:

-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.

-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.

-To be used in flow irrigation systems in gardening and agriculture and industrial fittings
