Products >> Pump Accessories >> Pressure Gauge
Y40R
- Product No.：2022113111814
- Price：1.2~3.5USD

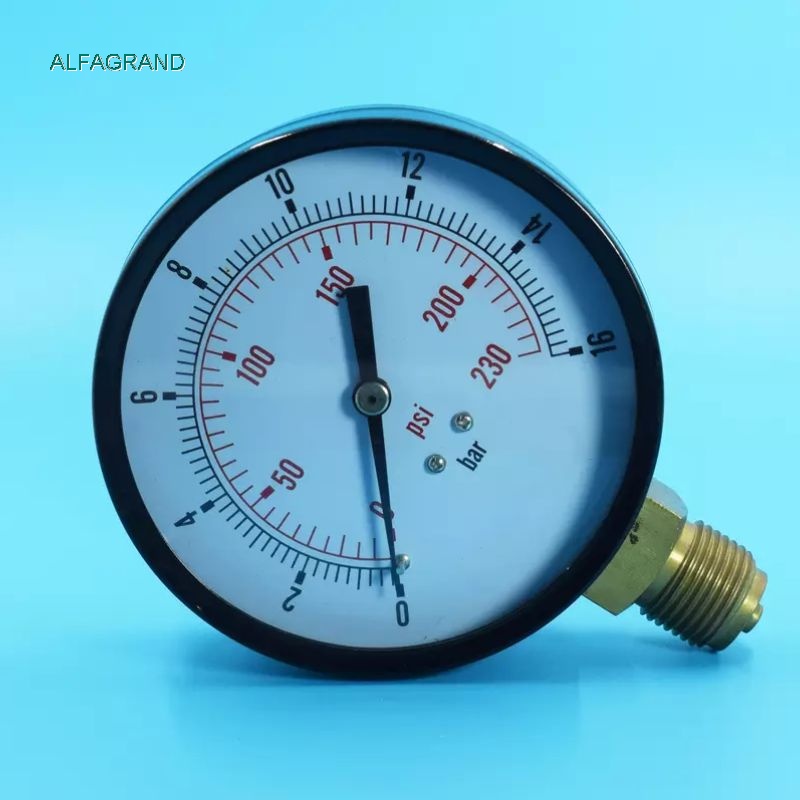

- Product name：Multi-Application Steel Case Shell Radial black pressure gauge
- Model Number：Y40R Series
- Other：Min. Order: 250 Pieces
| Name | Pressure gauge |
| Diameter | 1.5”,2.0”,2.5”,3”,4”,6” |
| Dials Size |
1.5"(40mm)2"(50mm), 2.5“(63mm) |
| Scale | psi, bar, Mpa, kg/cm2, kpa etc. optional |
| Ring | Non, black steel or chrome plated |
| Movement | Brass |
| Bourdon tube | Brass |
| Dial plate and pointer | Brass or aluminum |
| Window | Plastic or Glass |
| Connection sizes | 1/8 for 1.5" (40mm)case; 1/4 for 2"(50mm) or 2.5"(63mm) case. |
| Connection threads | Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT) |
| Mounting | Bottom connector,back connector |
| Case Material | Plastic, black steel, plated steel and stainless steel |
| Oil-filled Gauge: | Glycerin or Silicon |
| Precision | 2.5 |
| 2.0 | |
| Pressure limitation | Steady: 3/4x full scale value |
| Fluctuation:2/3x full sacle value | |
| Short time:full scale value |
foam board package
1.5" pressure gauge, 400pcs/ctn
2.0" pressure gauge, 196pcs/ctn
2.5" pressure gauge, 196pcs/ctn
white box package, 100pcs/ctn
