LS-4

Product No.：202211215207
Price：9.5~15USD

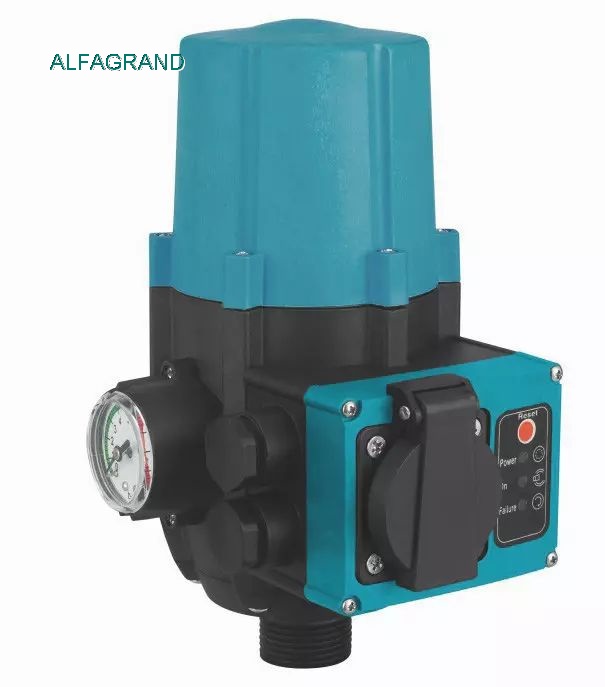

Product name：Adjustable LS-4 automatic water pump pressure controller with european socket
Horsepower：1.1kw
Model Number：LS-5 Series
Material：Plastic body,domestic relay,with test cable&plug
Voltage：110V/60HZ,220V/50HZ
Other：Min. Order: 120 Pieces
Online Inquiry

Automatic pump controller

Water pump electronic pressure controller can replace the complicated installations of automatic water pump
e.g. pressure gauge, pressure switch, T-valve, check valve and pressure tank.
It has the features of stable performance, low maintenance and long lifespan.
1). Economic automatic Water pump pressure switch used in water systems.
2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).
3). Joint screw: G1"
4). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
5). Stop the water pump in the case of water shortage.
6). Customized setting.

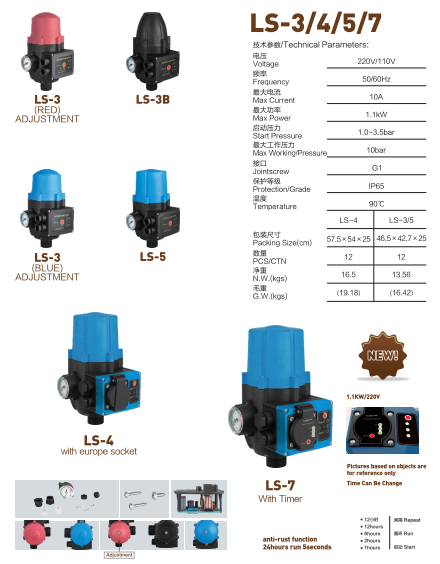

LS-4 SERIES ELECTRICAL PRESSURE SWITCH WITH EUROPEAN SOCKET
Voltage: AC 220V/110V
Frequency: 50/60Hz
Power: 1.1kW
Max current: 10A
Start pressure adjustable: 1.0~3.5bar
Max. Working pressure: 10bar
Inlet/Outlet: G1"
Protection class: IP65
Max water temperature: 90℃
Water shortage protection time: 9 seconds
