Products >> Pump Accessories >> Pressure Switch
MC-2
- Product No.：202211114114
- Price：1.5~2.5USD

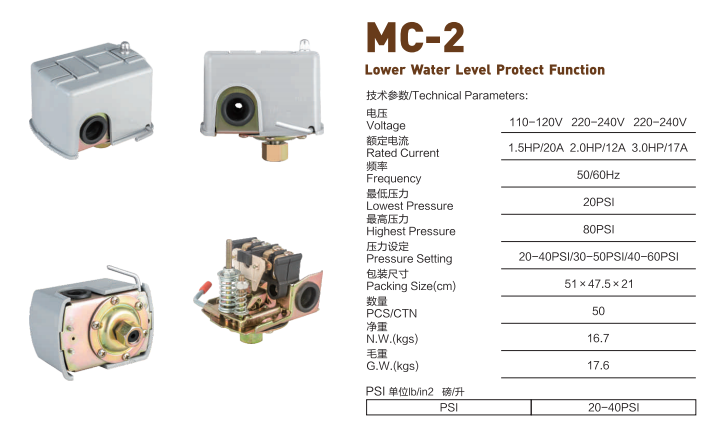

- Product name：High standard MC-2 Automatic water pump pressure switch mechanical switch
- Horsepower：Rate Current:1.5hp/20A;2.0hp/12A;3.0hp/17A
- Model Number：MC-2 Series
- Material：Plastic grey cover,Iron base,Sliver Contact
- Voltage：110V/60HZ,220V/50HZ
- Other：Min. Order: 250 Pieces
Pressure Switch for water pump Function:
MC-2 low-level pressure protection type
1. When the internal pressure of the pipe is higher than the set pressure, the load power supply (pump) should be disconnected, and when it is lower than the set pressure, the dominant power supply (pump) should be connected.
MC-2 low-level pressure protection type
1. When the internal pressure of the pipe is higher than the set pressure, the load power supply (pump) should be disconnected, and when it is lower than the set pressure, the dominant power supply (pump) should be connected.
2. And there are independently set adjusting screws for connecting and disconnecting pressure.
3. 6 terminals, 8 silver alloy long life contacts.
4. Used independently or with MC-9. When equipped with MC-9, the pump can be stopped at low pressure or water storage to protect the pump from damage due to dry running.
5. Can be connected to the load by the reset button.
6. The special design of cable gland is suitable for harsh environment.
7. Applications. Self-priming pump / Ejector pump / Garden pump / Purification pump
