Products >> Water Valve >> 2nd Water Level Control Valve

JYNS20

Product No.：20221116223238
Price：1~1.85USD

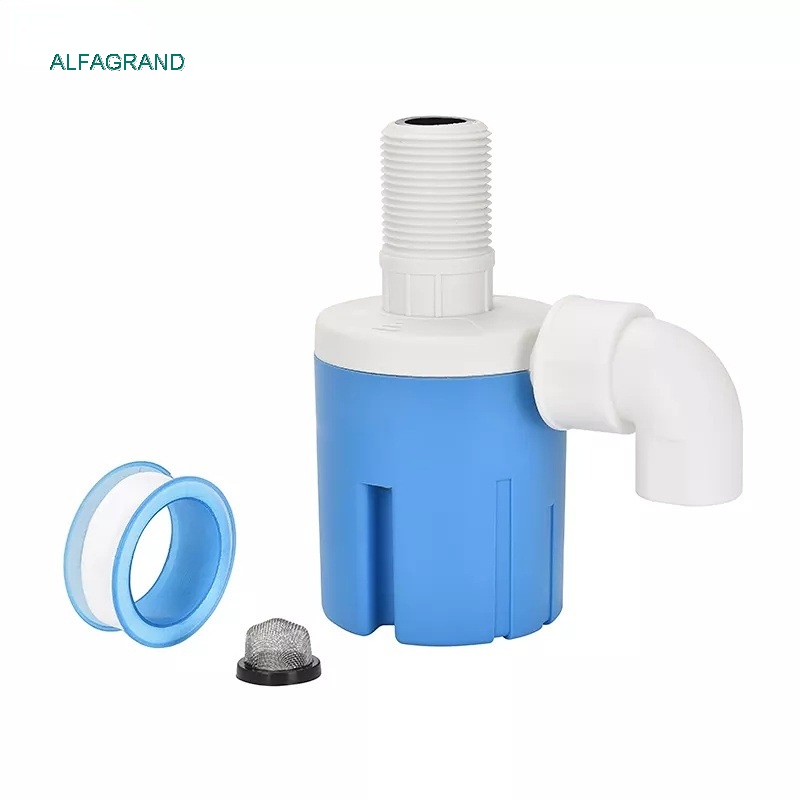

Product name：Inside Valve 3/4 Inch
Horsepower：Hydraulic

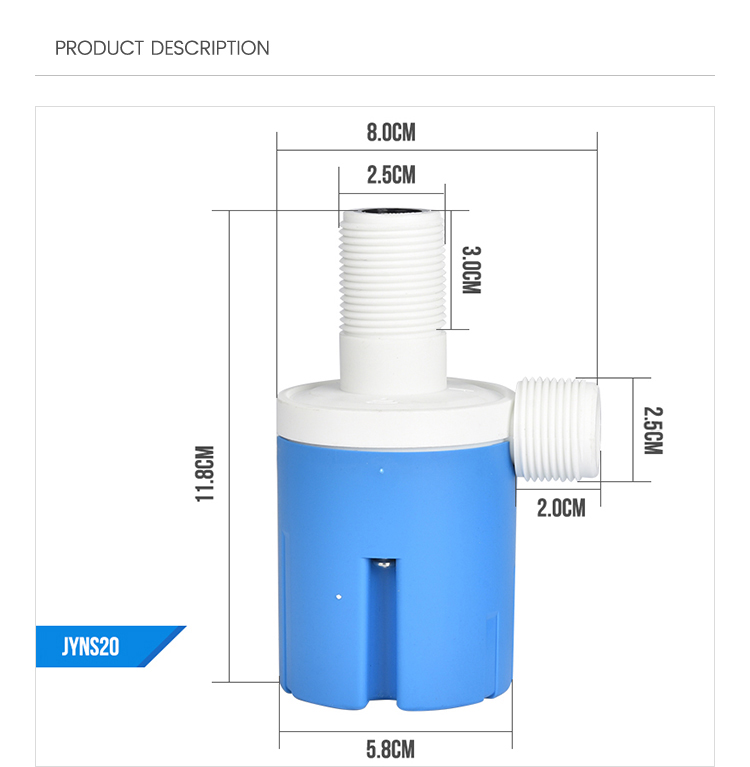

Model Number：JYNS20
Material：ROHS Nylon
Other：Work pressure: 0.01MPa~1.5MPa
Online Inquiry

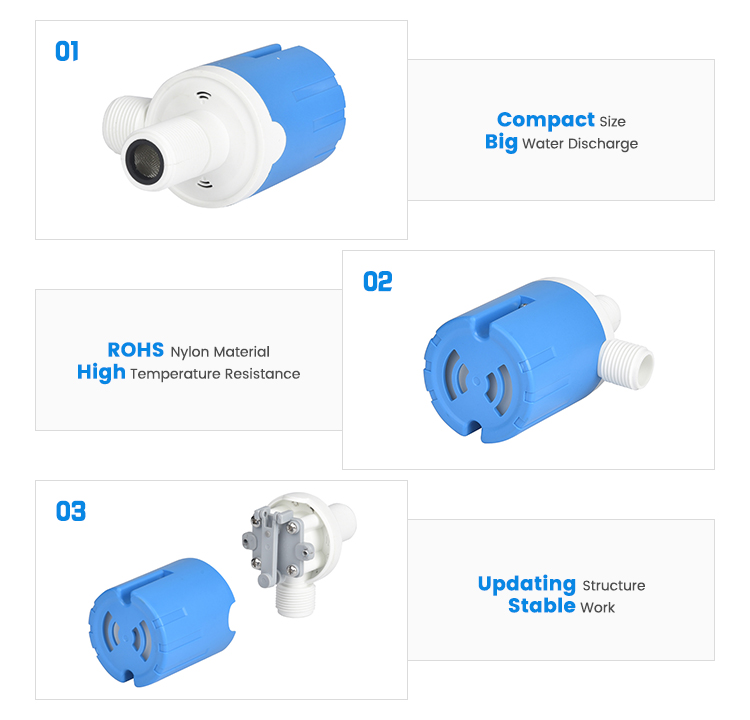

Features:

The AUTOMATIC WATER LEVEL CONTROL VALVE is a patented product, which is lnstead of old float valve.
It automatically supply and stop water according to the water level change.

Product Principle: When water level rise to water limit line, water level control valve will stop supplying water at once;
when water level of water tank fall down, the valve will start to supply water automatically.

MODEL	SIZE	INSTALLATION	TEMPERATURE	WORK PRESSURE
JYN15	1/2"	Horizontal	≤80°C	0.01~1.5MPa 0.1~10Bar 1.5-150PSI
JYN20	3/4"	Horizontal
JYN25N	1"	Horizontal
JYNS15	1/2"	Vertical
JYNS20	3/4"	Vertical
JYNS25	1"	Vertical
