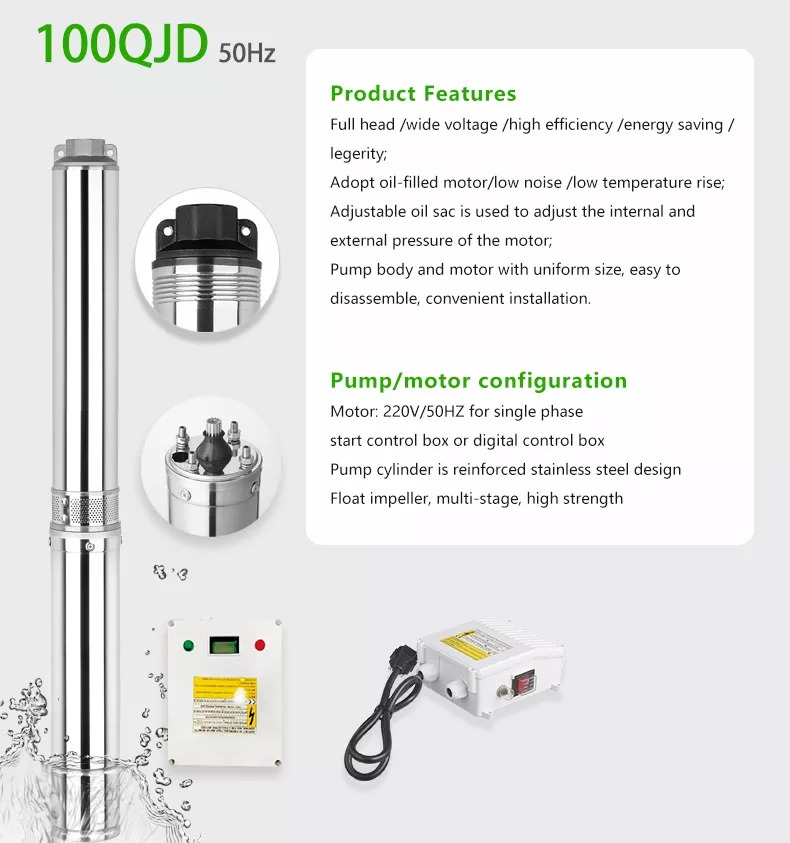

PRODUCT FEATURES:

Full lift, full voltage, high efficiency, energy saving, light;

Oil filled motor, soundproof, slow rise in temperature;

Equip with expandable oil capsule, able to adjust motor internal and external pressure;

The pump body and the motor are in uniform size.can be assembled or disassembled easily;

PUMP/MOTOR CONFIGURATION:

Motor: Single phase 220V/50Hz, three phase 380V/50Hz(60Hz available);

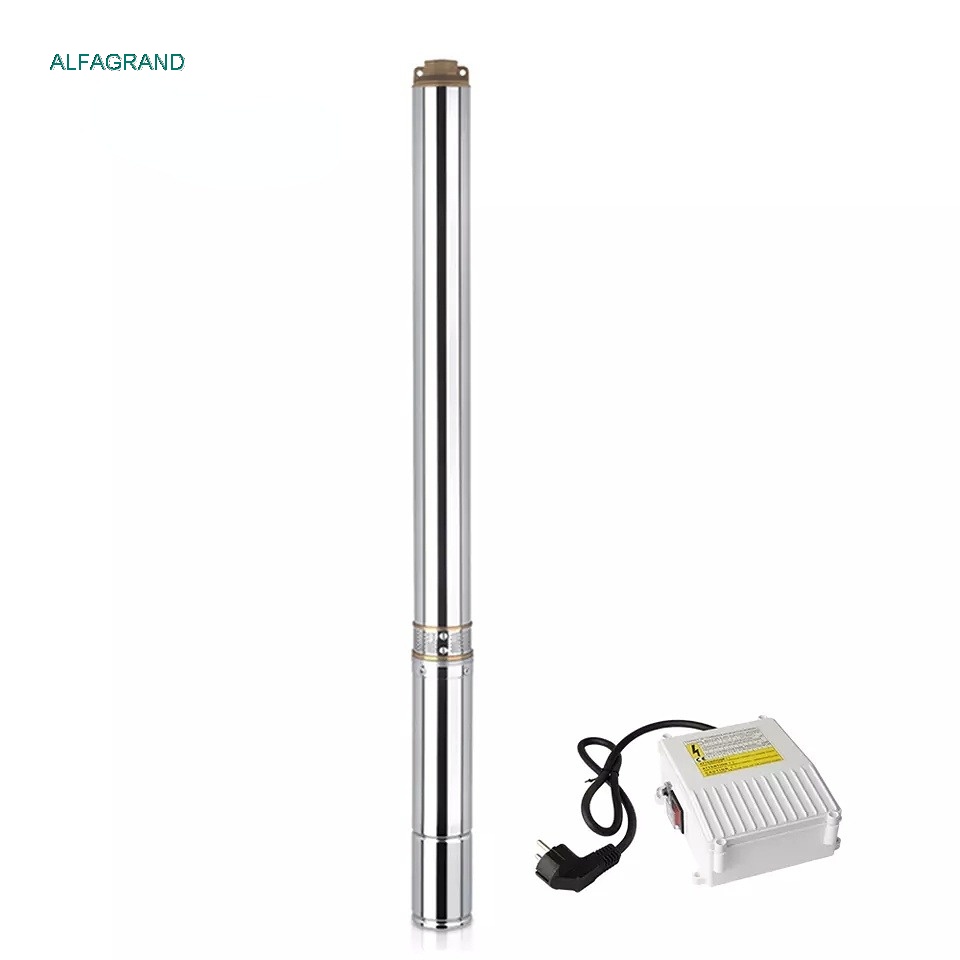

Equip with manual control box or digital automatic control box;

Pump case use reinforced stainless steel design;

Equip with professional mechanical seal;

Floating impeller, multi-levlel, high strength;

OPERATION CONDITION:

The pump can be continuously functional under the conditions below;

Highest liquid temperature no more than 35°C;

Largest media particle no bigger than 0.25%;

Maximum diving depth 100 meter, no less than 5mm;

Power source frequency 50Hz, single phase alternating voltage 220V, tri-phase;

alternating voltage 380V, voltage fluctuation ranges ±10% of rated value;

PRODUCT APPUCATION:

Widely used in long-distance water delivery irrigation, breeding of high oxygen, deep water extraction, urban and rural water booster, mine water supply or deliver syrup for food and chemical industries, non corrosive chemical liquidate.
