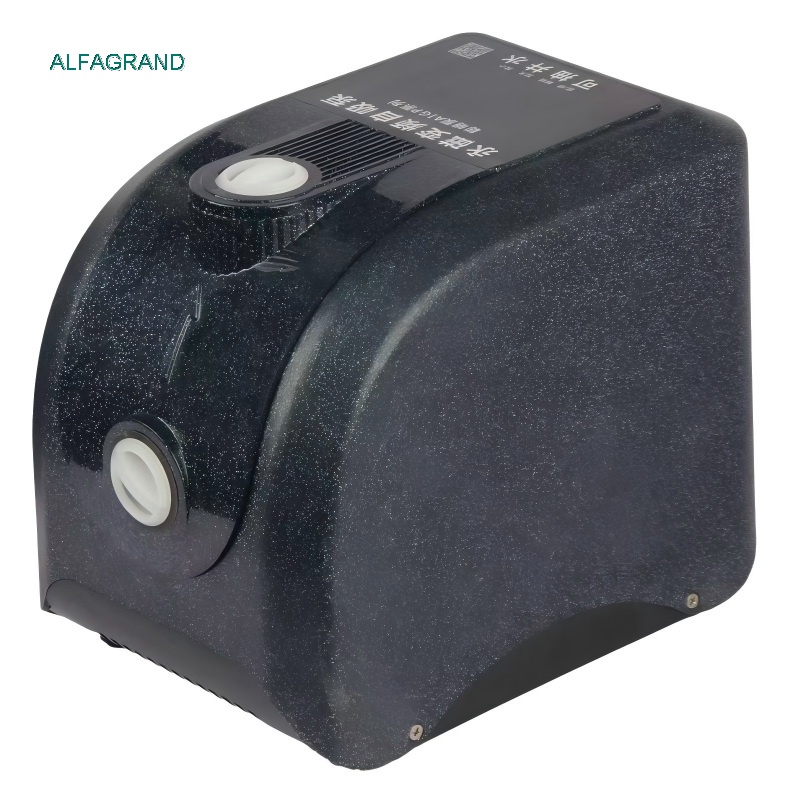

AIGP400 Constant Pressure Variable Frequency Booster Pump
Water Pump Manufacturer for Wholesale and OEM Buyers

Products >> Surface Pump >> Smart Pump

  • AIGP400 0.5HP Constant Pressure Variable Frequency Booster Pump
AIGP400 0.5HP Constant Pressure Variable Frequency Booster Pump

AIGP400 0.5HP Constant Pressure Variable Frequency Booster Pump

  • Product No.:20264299518
  • Price:56-117USD
  • Product name:Constant Pressure Booster Pump
  • Horsepower:0.5-1.5hp
  • Model Number:AIGP
  • Material:SS304 impellers and shaft
  • Voltage:160v-260v
  • Water Quality:Clean Water
  • Motor:IE4 Permanent Magnet Motor
  • Online Inquiry


AIGP400 Series Smart Inverter Pump

Permanent Magnet Variable Frequency Multi-stage Centrifugal Pump

IE4 Energy Efficiency Ultra-Silent < 45dB
AIGP400 Inverter Pump

9 CORE ADVANTAGES

🤖

Intelligent Start/Stop

Fully automatic induction system. Tap on, pump on; tap off, pump off.

⚖️

Constant Pressure

Maintains stable pressure even with 5 water points used simultaneously.

💧

8m Self-Priming

Real 8-meter suction head. Easily pumps low-level well water.

🔥

Hot & Cold Dual Use

PPS Body + SS304 Shaft. Safe for water temperatures from 4℃ to 80℃.

🛡️

Intelligent Protection

Includes dry-run, over-voltage, leakage, and anti-freezing alarms.

🤫

IE4 Ultra-Silent Motor

Noise level below 45dB. Saves 30%+ energy compared to AC motors.

📟

Digital Control Panel

Real-time pressure display and fault codes. Simple plug-and-play.

⚡

Wide Voltage (160-260V)

Stable operation even in remote areas with unstable power grids.

☔

IP55 Waterproof

Epoxy-encapsulated VFD for ultimate moisture and rust protection.

TECHNICAL SPECIFICATIONS

Parameter Value
Model AIGP400
Power 0.5 HP / 400W
Motor IE4 Permanent Magnet Inverter Motor
Self-priming Suction 8 Meters
Voltage Range 160V - 260V
Noise Level < 45 dB
Materials SS304 Shaft & Impeller, PPS Engineering Plastic


User-Friendly Control Panel

Equipped with a high-definition digital display. You can monitor water pressure and fault codes in real-time.
No professional debugging is required—just set the pressure and go.

Motor Structure

Precision Engineering & SS304 Impeller

Internal components are made of food-grade SS304 stainless steel and high-performance PPS. This ensures the pump is corrosion-resistant and capable of handling hot water up to 80℃ without leaking or degrading.

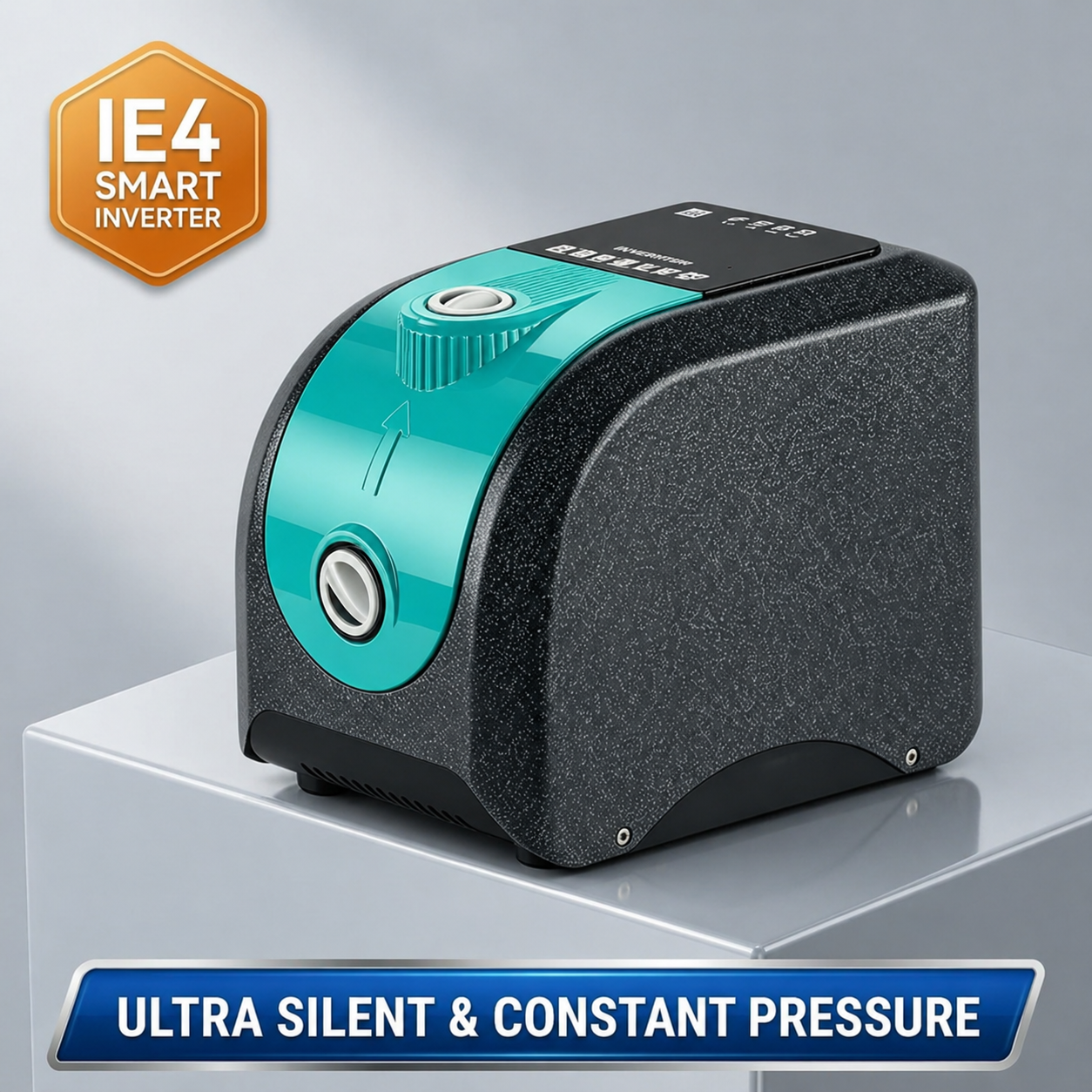

AIGP400 smart variable frequency booster pump product overview

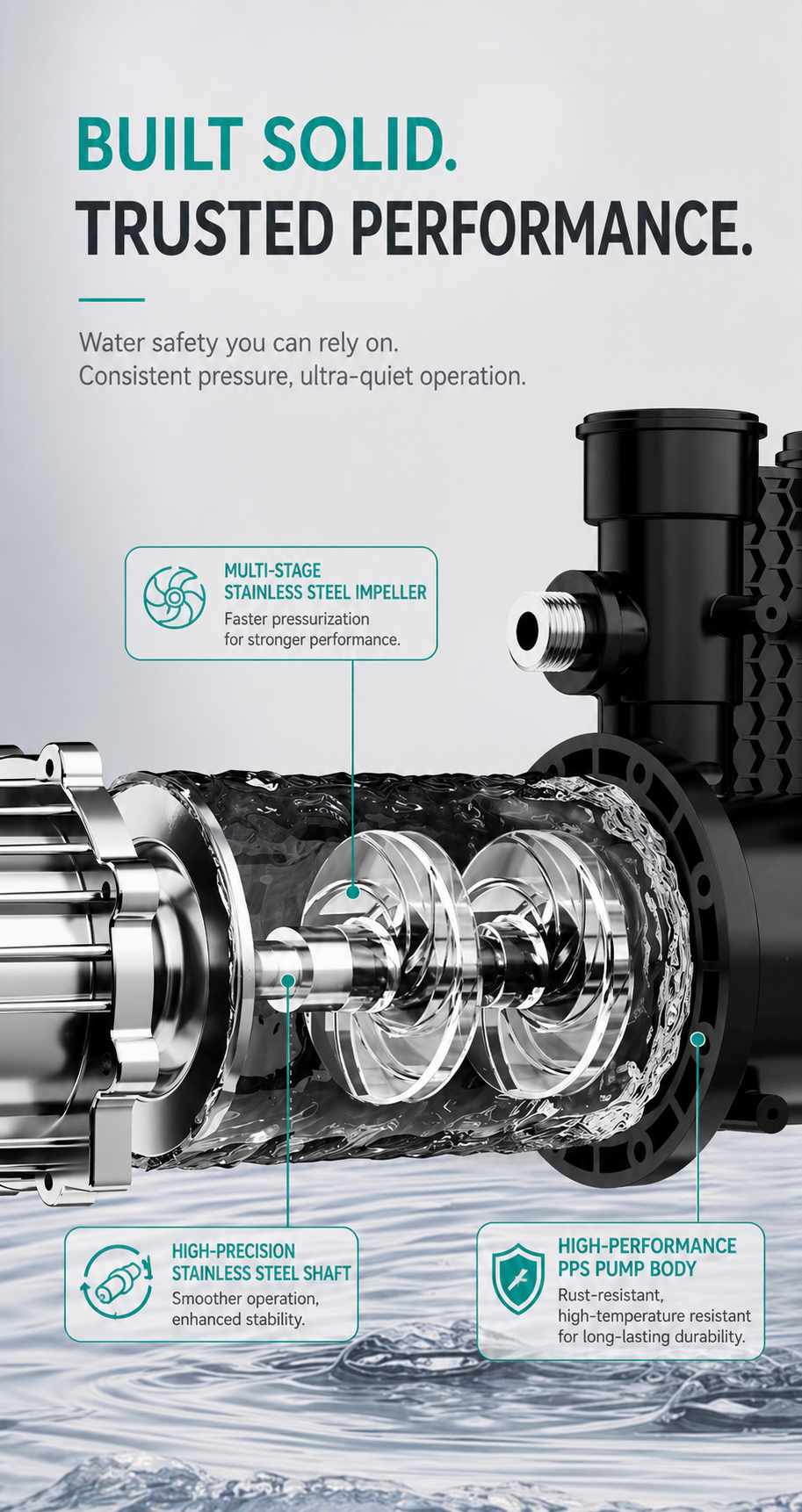

AIGP400 variable frequency booster pump installation and structure details

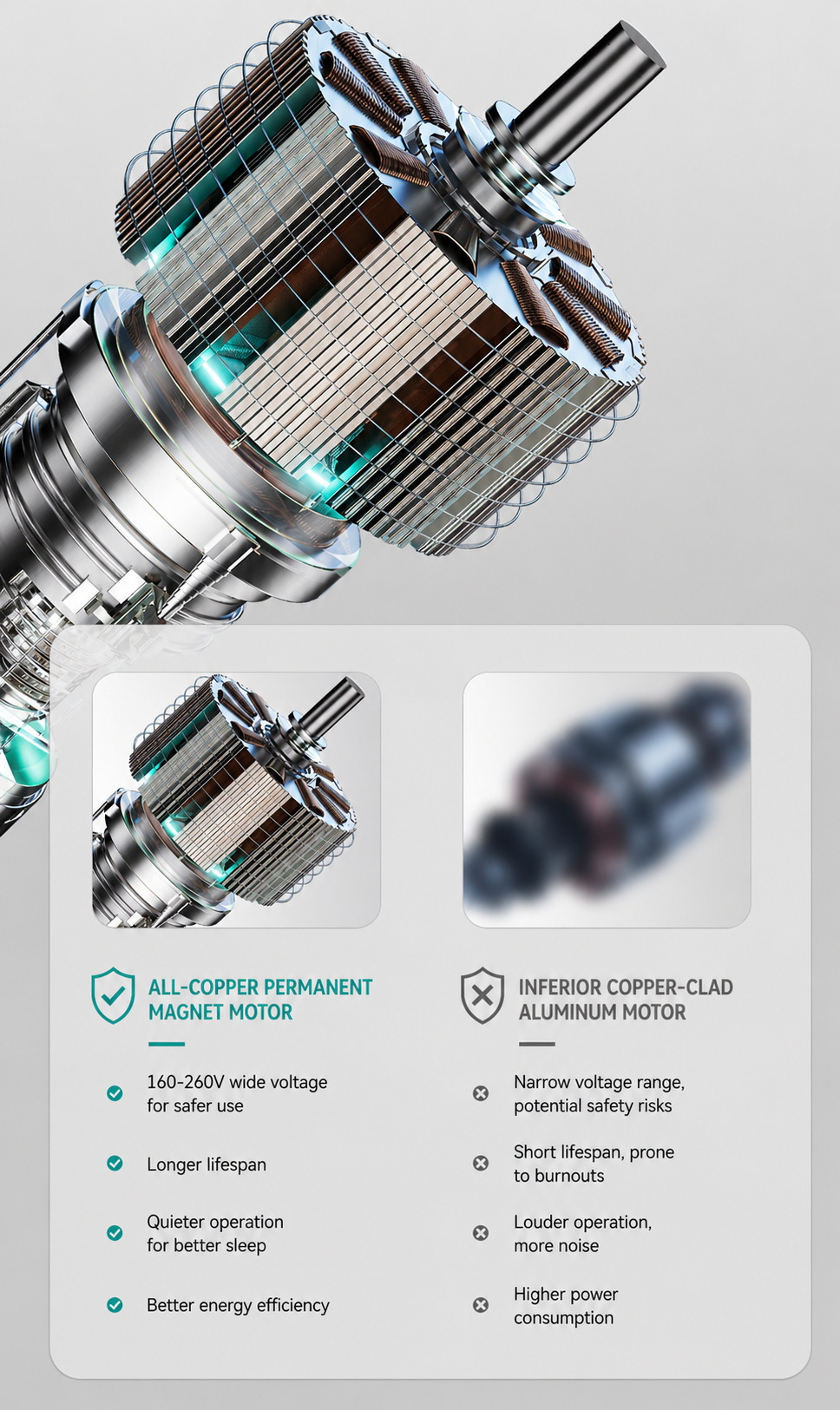

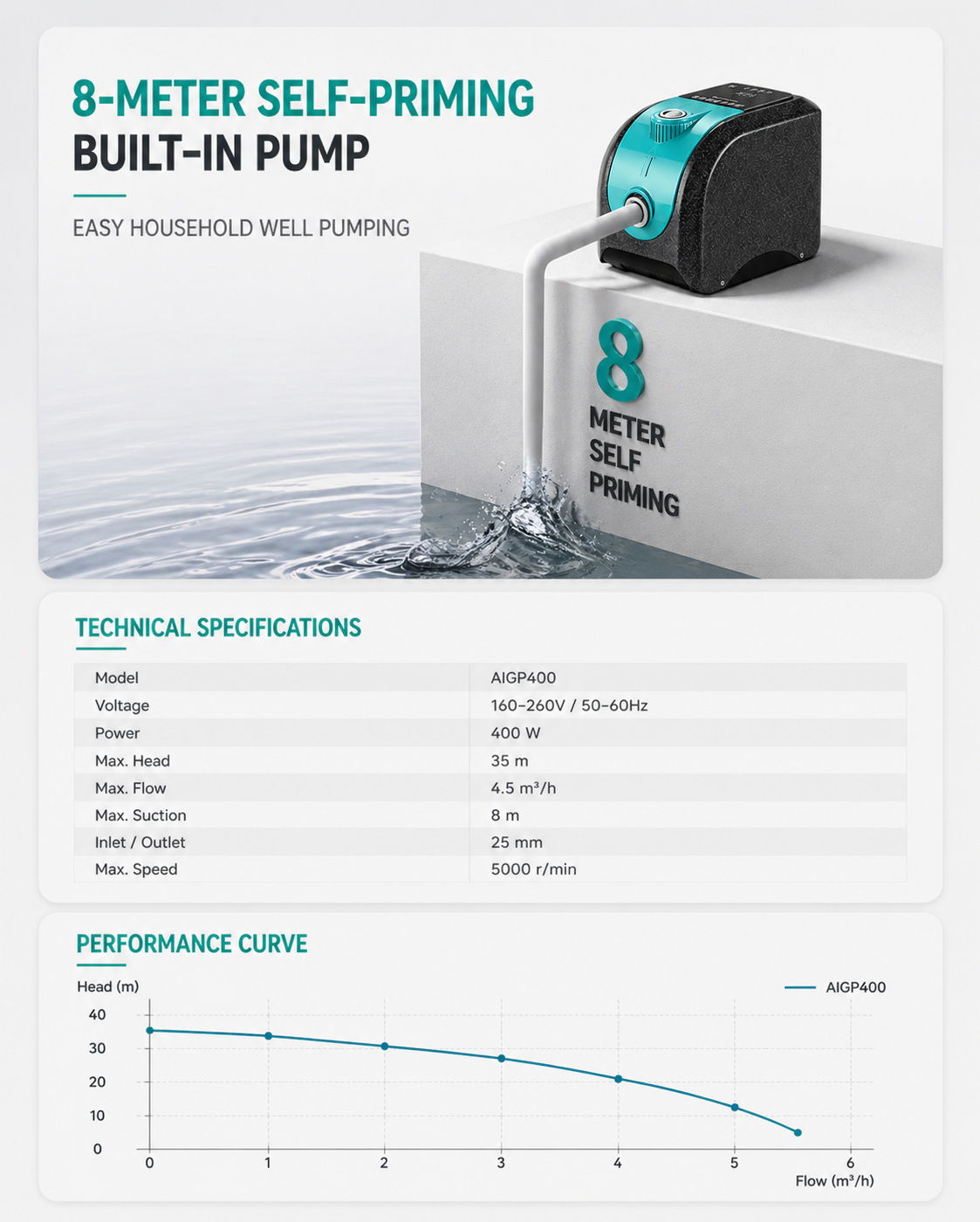

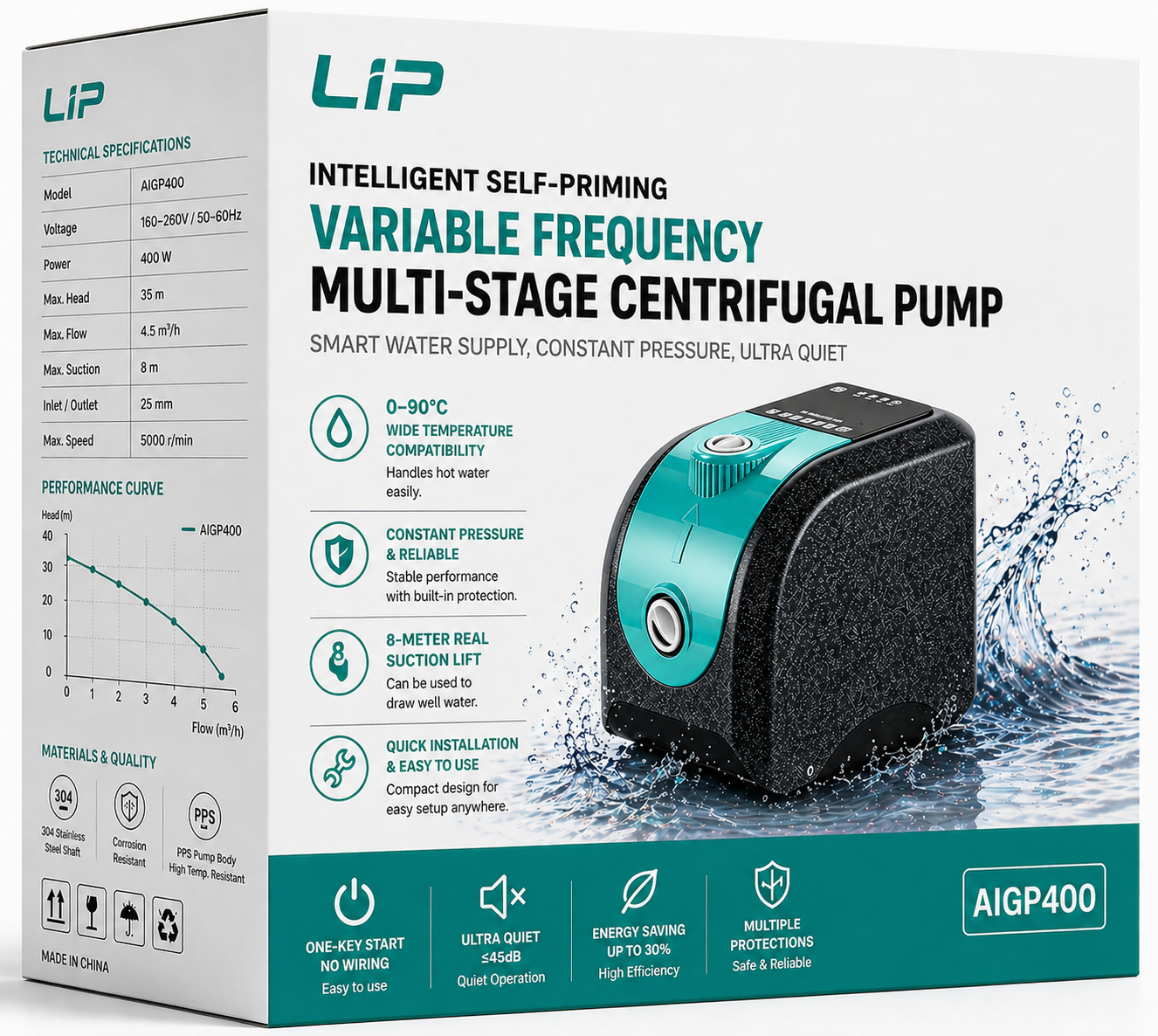

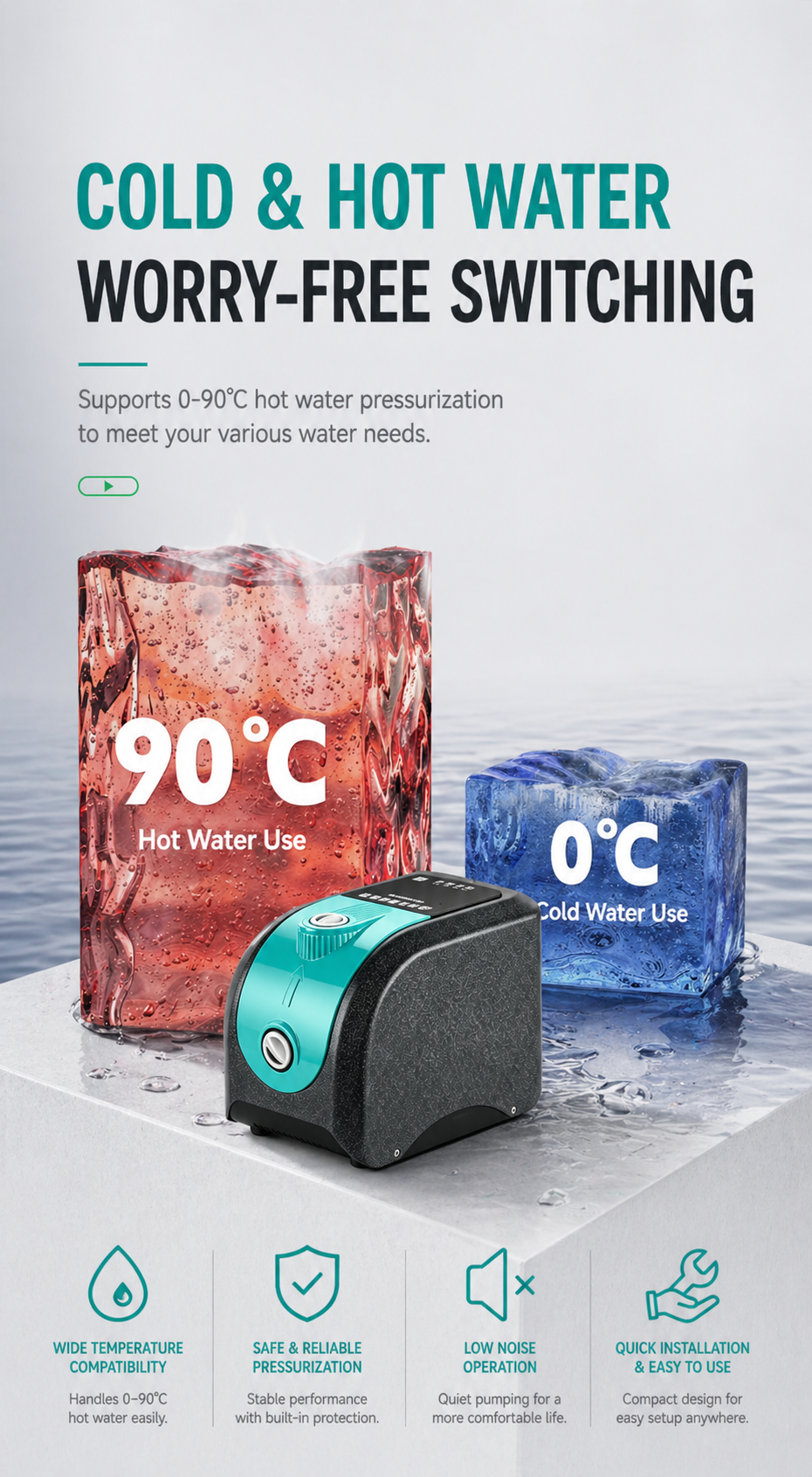

AIGP400 intelligent booster pump parameter and performance referenceAIGP400 household constant pressure water pump applicationAIGP400 permanent magnet motor and pump component detailsAIGP400 smart water booster pump protection functions and features

OEM/ODM COLOR OPTIONS

Support customized colors to match your brand identity.

AIGP400 variable frequency booster pump detail view AIGP400 booster pump control panel detailAIGP400 water inlet and outlet connection detailAIGP400 smart pump installation detail

Selection and Ordering FAQ

What information should I provide to select this booster pump?

Send the required flow, delivery pressure, incoming water conditions, pipeline layout, voltage and frequency. Compare the required duty point with the AIGP400 performance curve before ordering.

What is the minimum order and estimated lead time?

Standard MOQ is 100 pcs. Estimated lead time is 20–25 days for loose cargo or 30–36 days for one container. Confirm the final schedule and available OEM options in the quotation.

Which certification documents are available?

ISO 9001 quality management documentation is available on request. Ask us to confirm whether the CE documents apply to this exact configuration and destination market.

Compare more smart water pumps or send an AIGP400 enquiry with quantity and project details.

Ready to upgrade your water system?

Contact us now for the latest wholesale prices and customization details.
